AI Gateway Landing Zone

AI Gateway Landing Zone is an enterprise-grade landing zone that provides a centralized, governable, and observable gateway plane for AI consumption across teams and environments. It is delivered by the Citadel Governance Hub solution accelerator, a comprehensive solution for governing, observing, and accelerating AI deployments at scale with unified security, compliance, and intelligent orchestration.

The accelerator helps you deploy and operate the gateway using:

  • Infrastructure-as-code (Bicep, Terraform)
  • A unified AI gateway pattern (Azure API Management)
  • Usage ingestion components (Logic Apps + Event Hub + Cosmos DB)
  • Validation notebooks and operational guides

Use it on its own, or together with Agent Landing Zone, which provides the Azure foundation for the agents and applications that consume the gateway.

Source code: Azure-Samples/ai-hub-gateway-solution-accelerator (Bicep) and Azure/terraform-ai-gateway-landing-zone (Terraform).

Part of the AI Citadel Blueprint

Important

This accelerator is the reference implementation of Layer 1 – Governance Hub in the AI Citadel Blueprint layered security architecture.

The AI Citadel Blueprint is a unified, layered approach to AI security and compliance, designed to enable enterprises to scale AI innovation while maintaining trust, security, and regulatory alignment. The blueprint is composed of four interlocking layers:

Layer Name Responsibility Implementation
🔷 Layer 1 Governance Hub Runtime enforcement — unified AI gateway, policy-as-code, identity validation, token rate limiting, content filtering, cost attribution 👉 This Accelerator (aka.ms/ai-hub-gateway)
🔶 Layer 2 Agent Operations Agent runtime, observability & compliance — agent traces, AI evaluations, fleet operations, automated compliance checks Microsoft Foundry Agents & Control Plane
🟢 Layer 3 Agent Management Agent identity & lifecycle governance and security — unique agent identities, blueprints, shadow agent detection, sponsorship model, access packages Governing Agent Identities with Agent 365
🛡️ Layer 4 Security Foundation Unified protection — Microsoft Defender for AI threat intelligence, Purview for data governance, Entra for authentication and authorization Microsoft Defender, Purview & Entra

The layers are not isolated silos — they form an integrated architecture grounded in the principle of separation of concerns with unified oversight.

Layer 1: Governance Hub (this accelerator) acts as the runtime gateway through a hub-and-spoke deployment where a centrally managed AI gateway (Azure API Management) enforces runtime policies, while Layer 2: Agent Operations spoke environments give each business unit autonomous development within guardrails. Adding Layer 3: Agent Management ensures that every agent has a unique, governable identity, while Layer 4: Security Foundation provides unified threat protection and data governance across the entire architecture.

📎 For the full Citadel Blueprint approach and guidance, see the AI Citadel Blueprint section of this site.

Benefits (Summary)

Citadel Governance Hub helps you standardize AI governance while maintaining developer velocity:

  • Governance & security: consistent access control, identity patterns, policy enforcement
  • Observability & compliance: central logging/metrics and near real-time usage analytics
  • Developer velocity: repeatable onboarding patterns and contract-driven configuration

For a detailed stakeholder- and capability-level breakdown, see Governance Hub Benefits.

What's included

The Bicep implementation includes:

  • bicep/infra: main IaC entrypoint and modules for provisioning the hub in addition to submodules for operational processes.
  • src/usage-ingestion-logicapp: Logic App workflows for processing usage/log streams and other governance workflows.
  • Validation notebooks: Jupyter notebooks for post-deployment validation and onboarding.
  • Operational and architecture guides, published on this site.

The Terraform implementation has a parallel structure to the Bicep implementation.

Architecture Overview

AI Citadel Governance Hub follows a Central-Control-Plane with decentralized Agent-Execution-Plane architecture that integrates seamlessly with your existing Azure Enterprise Landing Zone network topology:

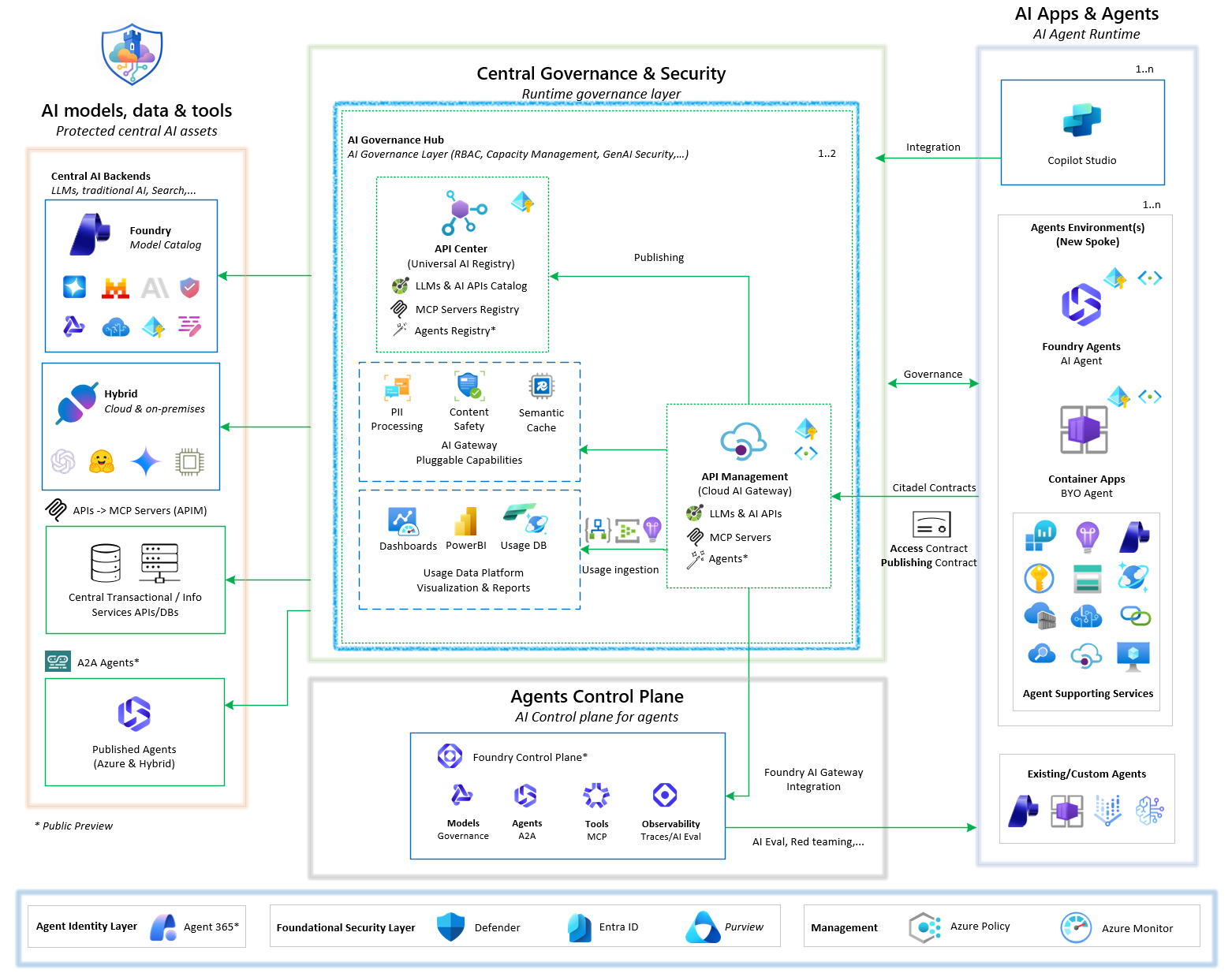

Citadel Governance Hub

Networking approach

Detailed networking approach guidance for Citadel Governance Hub can be found in the Network Approach Guide.

Initial deployments support optional private-only Logic App website and SCM/Kudu access. This is opt-in; defaults remain public access enabled with no Logic App private endpoint.

Below is a high-level overview of the two supported deployment approaches:

Part of spoke network (peered to a hub VNet in the connectivity subscription)

In this approach, the Citadel Governance Hub is deployed within a dedicated spoke VNet that connects to the hub VNet via VNet peering.

Agentic workloads in other spokes are routed first to the hub network firewall through direct peering, then forwarded to the Citadel Governance Hub gateway network.

This provides an additional layer of isolation for AI workloads while still enabling secure communication with other enterprise resources in the hub.

This is the recommended approach for large enterprises with strict network segmentation requirements or those who want to isolate AI workloads from other enterprise resources.

Part of the enterprise network hub (usually in Connectivity subscription)

In this approach, the Citadel Governance Hub is deployed within the existing enterprise hub virtual network (VNet) of your Azure Enterprise Landing Zone.

This allows for direct communication between the unified AI gateway and connected agentic spokes (as the hub already peered with all spoke networks), leveraging existing networking configurations.

This approach is suitable for enterprises that prefer to integrate the governance hub within their existing network architecture without additional segmentation.

Citadel Governance Hub Components - Central Runtime Control Plane

The central governance layer with unified AI Gateway that all AI workloads route through.

Core Components

Component Classification Purpose Enterprise Features
🚪 API Management Required Unified AI gateway LLM governance, AI resiliency, AI registry gateway
📘 API Center Recommended Universal AI Registry Discovery of available AI tools, agents and AI services
🔍 Microsoft Foundry Required Control Plane/Models/Observability Platform LLMs, Control Plane & AI Evaluations
📊 Log Analytics Required Logs, metrics & audits Scalable enterprise telemetry ingestion and storage
📊 Application Insights Required Platform monitoring Performance dashboards, automated alerts
📨 Event Hub Required Usage data streaming Real-time usage streaming, custom logging
🗄️ Cosmos DB Required Usage analytics Long-term storage of usage, automatic scaling
⚡ Logic App Required Event processing Workflow-based processing of usage/logs & AI Eval
🔗 Virtual Network Required Private connectivity BYO-VNET support, private endpoints

Security & Compliance

AI Gateway security & compliance enforcements components:

Component Classification Purpose Enterprise Features
🔐 Managed Identity Required Zero-credential auth Secure service-to-service communication
🛡️ Content Safety Required LLM protection Prompt Shield and Content Safety protections (served from the primary Microsoft Foundry / AI Services account)
💳 Language Service Required PII detection Natural language and RegEx based PII entity detection with anonymization support (served from the primary Microsoft Foundry / AI Services account)
🔍 Microsoft Foundry Recommended Control Plane Control plane, responsible AI, registration of external agents

Supported by subscription wide security services:

Component Classification Purpose Enterprise Features
Defender for AI Recommended Threat protection AI workload security posture management
Purview Recommended Data governance Sensitivity labeling, data classification
Entra ID Required Identity & access management Zero Trust architecture, conditional access

AI Services

Optionally you can deploy one or more generative AI services as part of the Citadel Governance Hub to provide fully functional gateway with LLMs already integrated:

Component Classification Purpose Enterprise Features
Microsoft Foundry Required Model Catalog Access to rich foundational model catalog with variety of deployment options and required for Azure Language and Azure Content Safety services

Optional Components

Pluggable components to enhance AI Citadel Governance capabilities:

Component Classification Purpose
Azure Managed Redis Optional Semantic caching layer for high-throughput AI workloads

Agents Onboarding - for existing and new agents

To govern AI agents through Citadel Governance Hub, agents must communicate with AI backends (central LLMs, tools and agents) through the Citadel's unified AI gateway.

Access Contracts

Leverage Citadel Access Contracts to declare the required access to LLMs, tools and agents through the gateway along with precise governance policies.

Access contracts are infrastructure-as-code declarations of the access requirements and governance policies for an agent, which are then automatically enforced at runtime by the gateway.

NOTE: Recommendation is to create one contract per business-unit/use-case/environment to allow for precise governance policies and better observability in the hub.

Publish Contracts (Preview)

Leverage Citadel Publish Contracts to onboard and publish centrally protected AI assets — Tools (MCP) and Agents (A2A) — through the gateway with per-asset backends, resiliency, baseline policies, usage tracking, and optional API Center registration.

Publish contracts are infrastructure-as-code declarations of the AI assets published on the gateway. See the Publish Contract Guide for asset types, backend/auth options, and Foundry A2A publishing.

NOTE: Publish Contracts and Foundry-hosted A2A publishing are available in Preview (publish-contract-version: 1.0.0-preview). Publishing an asset does not grant access to it — governed access (products/subscriptions) is handled by Access Contracts.

Existing agents

Guidance to bring existing agents is through updating endpoint and credentials to access central LLMs, tools and agents through the unified gateway endpoint and credentials that are produced by the access contract provisioning for each agent.

NOTE: Recommendation is to use Azure Key Vault to store these information due to its sensitivity when the agent is running on Azure.

New agents (AI Landing Zone for Microsoft Foundry)

Building new agents is accelerated through the AI Landing Zone for Microsoft Foundry guidance, which helps enterprises adopt AI faster by offering a governed, secure, and repeatable foundation for deploying AI applications and agents on Azure at scale.

For detailed guidance and technical implementation, see Agent Landing Zone.

Deployment Approach:

  • One Agent Execution Plane per business unit or use case - Deploy dedicated Foundry landing zone environments for each business unit, such as insurance claims processing, customer support automation, or other agentic scenarios
  • Flexible runtime options - with Microsoft Foundry Agents (fully managed agent runtime) you get to choose between native Foundry agents or bring-your-own agent container frameworks like LangChain, Microsoft Agent Framework, or custom implementations while still benefiting from the unified governance and security of the hub
  • Pre-configured infrastructure - Automated deployment via Bicep or Terraform with all networking, security, and monitoring built-in
  • Hub integration - Seamless connection to Citadel Governance Hub through Citadel Access Contracts

Deployment Patterns:

  • Greenfield (Standalone with New Resources) - Creates all infrastructure from scratch with new VNet and Log Analytics workspace
  • Brownfield (Standalone with Existing Resources) - Integrates with existing enterprise landing zones, reusing VNets and centralized monitoring

NOTE: As per Citadel Blueprint principles for Layer 2: Agents Operations, this landing zone provides a standardized foundation for enterprise AI workloads, with implementation options in Terraform and Bicep deployment. By activating Access Contracts, agents deployed in this landing zone can seamlessly integrate with the Citadel Governance Hub for unified runtime governance and observability.

Governance Hub Operations - Contract-Driven Governance

Day-to-day operation of the Citadel Governance Hub is contract-driven: every change to what the gateway serves and who can consume it is declared as version-controlled infrastructure-as-code (.bicepparam files) rather than manual portal configuration. Three complementary contract types govern the gateway lifecycle:

  • 🔌 Backend Contracts — govern the supply side: which LLM backends and models the gateway can route to.
  • 📤 Publish Contracts (Preview) — govern which Tools (MCP) and Agents (A2A) are published through the gateway.
  • 📝 Access Contracts — govern the demand side: which use cases and agents can consume those models, and under which policies.

Together they create a clean separation of concerns: platform teams curate AI capacity and published assets, while business units onboard use cases against those governed assets without touching gateway internals.

flowchart LR
    subgraph Supply["🔌 Backend Contracts (Supply)"]
        B1[LLM Backends & Models]
        B2[Load Balancing & Failover]
        B3[Model Aliases]
    end
    subgraph Publishing["📤 Publish Contracts (Preview)"]
        P1[Tools / MCP]
        P2[Agents / A2A]
    end
    subgraph Gateway["🚪 AI Gateway (APIM)"]
        G1[Routing & Policy Engine]
    end
    subgraph Demand["📝 Access Contracts (Demand)"]
        A1[Products & Subscriptions]
        A2[Per-use-case Policies]
        A3[Foundry / Key Vault Credentials]
    end
    Supply --> Gateway
    Publishing --> Gateway
    Gateway --> Demand

Backend Contracts — Onboard LLM backends and models

Declares the governed AI capacity the gateway can route to, enabling dynamic backend routing without modifying APIM policies:

  • Multi-provider backends (Microsoft Foundry, Azure OpenAI, Amazon Bedrock, external/OpenAI-compatible providers)
  • Automatic load balancing and failover across backends serving the same model
  • Model aliases that abstract a client-facing name over multiple underlying models (with priority/weighted routing)
  • Dynamic model discovery (GET /deployments) so clients and Microsoft Foundry can enumerate available models

🔗 Learn More: Governance Hub Backend Contract Guide

Access Contracts — Onboard use cases and agents

Declares the governed dependencies an agent or use case needs—LLMs, AI services, tools, and reusable agents—along with precise access policies enforced at runtime by the gateway:

  • Model selection and capacity allocation (scoped to the curated backend capacity)
  • Per-use-case APIM product, subscription, and policy (one contract per business-unit / use-case / environment)
  • Safety and security guardrails (content safety, PII handling, layered API key + JWT authentication, OAuth scopes)
  • Usage quotas, cost limits, and flexible credential delivery (Key Vault, Microsoft Foundry connection, or direct output)

🔗 Learn More: AI Citadel Access Contracts Guide

Publish Contracts (Preview)

Publishes Tools (MCP) and Agents (A2A) through the gateway with declarative endpoint and backend configuration, baseline policies, usage tracking, resiliency for supported backend types, and optional Azure API Center registration. Foundry-hosted agents can be exposed as A2A endpoints.

NOTE: This capability is available in Preview (publish-contract-version: 1.0.0-preview). Its contract surface may change before general availability. See the Publish Contract Guide.

Why Contract-Driven Governance

  • ✅ Separation of concerns — platform teams manage backends; business units manage their own access contracts
  • ✅ Audit-ready traceability — every backend and access change is captured as reviewable infrastructure-as-code
  • ✅ Faster release cycles — repeatable, declarative onboarding with automated approvals via DevOps pipelines
  • ✅ Reduced manual effort — no manual gateway configuration for onboarding models or use cases
  • ✅ Continuous policy compliance — guardrails are enforced consistently at runtime for every request

Deployment Prerequisites (Basic/Fast)

For fast deployment, ensure you have the following prerequisites in place:

Azure Requirements:

  • Azure CLI and Azure Developer CLI installed and signed in
  • Owner or Contributor + User Access Administrator permissions on the subscription
  • All required subscription resource providers registered (providers are outlined in the Full Deployment Guide).

Tools: Although it is recommended to have the below tools installed on a local machine or through DevOps agents to conduct the provisioning, you still can leverage Azure Cloud Shell (mounted to storage account) as an alternative which has all the tools pre-installed.

NOTE: Azure Cloud Shell is a great option for quick deployment without local setup, but for ongoing development and operations, having the tools installed locally or in your DevOps environment along with a git-repo will provide a better experience especially when it comes to production deployments.

Quick Deploy

Deploy your Citadel Governance Hub in minutes with Azure Developer CLI:

# Authenticate and setup environment
azd auth login

# in a new folder, initialize the template (i.e. folder name: ai-hub-citadel-dev)
azd init --template Azure-Samples/ai-hub-gateway-solution-accelerator -e ai-hub-citadel-dev --branch citadel-v1

# Deploy Citadel Governance Hub
azd up

💡 Tip: Use Azure Cloud Shell to avoid local setup. This accelerator is setup by default to deploy ready to use Governance Hub. Review main.bicepparam configuration in case your need adjustments before deployment.

To deploy with Terraform instead, follow the Terraform quick start.

Transient deployment issues

During deployment, you might encounter transient errors related to resource provisioning, which are common in complex deployments. If you encounter errors, please try to rerun the azd up command. If the issue persists, please check the error message for specific details and ensure that all prerequisites are met.

TIP: For bicep deployments, a full list of deployed resources and status can be found in the Azure Portal under the resource group created -> Deployments.

Validation Notebooks

After successful deployment, validate your Citadel Governance Hub setup using our interactive notebooks.

Detailed list and guidance of the available notebooks can be found in the Validation Notebooks Guide, which includes step-by-step instructions to test key functionalities.

Explore the documentation

Start with the benefits of the Governance Hub, then use these guides to plan, deploy and operate the AI Gateway Landing Zone.

Understand the Citadel Blueprint

Guide Description
AI Citadel Blueprint overview The layered approach to governed AI at scale: the four layers, the shared trust model and defense in depth
Layer 1 · Governance Hub The runtime enforcement plane — one governed front door across four dimensions (the layer this accelerator implements)
Layer 2 · Agent Operations The AI experience engine and its first line of trust
Layer 3 · Agent Management Agents as owned, accountable enterprise and auditable assets
Layer 4 · Security Foundation Protect and detect beneath every agent across all layers
Organizational alignment & ownership The operating model and the full RACI: who sets the standards, who runs the platform, who builds the agents
Technical activation paths The four parallel tracks from deep dive to proof of value to production, plus what to provision, what to activate, and sizing
Original platform guides: technical guide and Well-Architected alignment The Foundry Citadel Platform guides as first published

Plan

Area Guide Description
Infrastructure Parameters (Bicep) Comprehensive Bicep parameter file usage
Network approach Detailed networking approach for Citadel Governance Hub deployment
Capacity planning Citadel sizing guide Guidance on sizing the Citadel Governance Hub based on workloads and environments
PTU estimation guide Azure OpenAI / Foundry LLM sizing guide for PTU vs Pay-as-you-Go capacity planning
AI Search cost estimation logic Cost estimation logic for Azure AI Search behind the gateway
Resilience & business continuity Resiliency guide Circuit breaker, session affinity, automated failover, error handling, and alerting — what each does, how it works, and when to configure it
Business continuity & DR guide Plan business continuity and disaster recovery for the hub itself: topologies, global routing and an operational runbook
Throttling events handling Comprehensive, opt-in alerting on throttling, backend, authorization, content-safety, and PII events per use case, model, and backend
App Insights alerting Deploy Azure Monitor alert rules for the gateway's alert events
Cosmos global multi-master sync Link two or more hub deployments through a shared multi-region, multi-write Cosmos DB topology

Deploy

Area Guide Description
Bicep Quick deployment guide Fast deployment with Bicep for non-production environments
Full deployment guide Comprehensive Bicep guide for dev, staging, and production
Post-deployment guide Day-2 activities: onboard backends & use cases, enable Entra ID, activate Power BI, go multi-region, and upgrade the gateway
Validation notebook setup guide Set up an isolated Python environment for the validation notebooks
Validation notebooks Notebooks for post-deployment validation and onboarding
Notebook snippets How shared code snippets are loaded into the notebooks
Developer VPN Optional connectivity add-on for private developer access to an existing deployment
Terraform Overview Terraform implementation of the landing zone, mirroring the Bicep reference architecture
Quick start Concise, copy-paste guide for deploying the hub to dev or prod
Variables guide Reference for all input variables of the root Terraform module
Full deployment guide The full deployment lifecycle: prerequisites, ordering, rollout strategies, optional add-ons and exact commands
APIM policy architecture How every API Management policy, fragment and named value is modeled, wired up and applied at runtime
Validation notebooks Testing and validation guide for Terraform-deployed hubs

Operate

Area Guide Description
Observe Platform observability guide Layered observability: APIM Analytics dashboard, Application Insights, Log Analytics LLM logs (with optional prompt/response auditing), and Cosmos DB + Power BI
Power BI dashboard Usage analytics and cost allocation dashboards
Backend contracts LLM backend onboarding (Bicep) Onboard LLM backends and models with load balancing, failover and model aliases
Unified AI API type onboarding Add new LLM provider API types to the Unified AI API without changing the core routing logic
Bicep module reference Reference for the Bicep modules behind backend contracts
LLM backend onboarding (Terraform) Onboard LLM backends to an existing hub APIM instance with a standalone Terraform deployment
Access contracts Overview Onboard use cases and agents with APIM products, subscriptions, policies and credential delivery (Bicep)
Reference guide Key concepts, folder conventions and deployment commands
Access contract policies Deep dive into policy configurations for access contracts
Resiliency guide Mirror a contract across additional gateways, Key Vaults and Foundry instances
LLM access guide Unified reference for the three LLM APIs and two access patterns, with a deep technical dive into model/backend routing
OpenAI-compatible API guide Use standard OpenAI SDKs and tools through the Unified AI API
Key rotation guide Optional zero-downtime rotation of subscription keys
Entra ID setup Create the Microsoft Entra ID app registration and configure APIM for JWT authentication
Entra ID auth validation JWT validation and Zero Trust implementation
JWT client identity permissions Direct app-role assignments for applications and managed identities, user-group assignments, and JWT permissions
PII anonymization & deanonymization Automated sensitive data protection
Agent Governance Toolkit Add agent-level governance on top of gateway-level controls
Operate access contracts (Terraform) Onboard use cases to an existing hub APIM instance with a standalone Terraform deployment
Publish contracts (preview) Overview Publish Tools (MCP) and Agents (A2A) through the gateway with optional Foundry A2A publishing
Publish contract guide How the Publish Contract onboards and publishes centrally protected Tools (MCP) and Agents (A2A) through the gateway
Gateway upgrade APIM gateway upgrade (preview) Update gateway policies, APIs, backends, diagnostics, and named values on an existing APIM instance without re-provisioning infrastructure
Gateway ecosystem upgrade guide Provision or align the supporting services (Logic App, Cosmos DB, Event Hub, Foundry, Key Vault, identities) around an existing APIM
Release version management Versioning model of the accelerator, the /version runtime endpoint, and how to plan and implement migrations
Foundry Foundry integration Let Microsoft Foundry projects use models through the gateway (Bring Your Own AI Gateway)

Release Version

The accelerator tracks its release state in a single source-of-truth manifest at the repository root — release.json. Instead of one monolithic version, it uses independent, component-scoped version tracks so a change in one subsystem does not force re-versioning of unrelated ones:

Track Meaning
master-version Umbrella accelerator release version
routing-version LLM request routing logic (backend pools, model resolution, failover)
backend-contract-version Shape of the llmBackendConfig backend onboarding contract
access-contract-version Shape of the Citadel Access Contract (products & access policies)
gateway-upgrade-version In-place APIM Gateway Upgrade tooling (currently -preview)
usage-ingestion-version Usage ingestion pipeline (Logic App + Function)

The deployed manifest is exposed at runtime through the Release Version API in API Management:

curl https://<your-apim-gateway-host>/version

This GET /version endpoint returns release.json. It is created automatically by the primary deployment and created/updated by the APIM Gateway Upgrade, so the endpoint always reflects the currently deployed release.

The same API also exposes GET /version/backend-contract, which returns the active LLM backend routing contract — a detailed projection of the effective onboarding configuration (APIM target, full llmBackendConfig with per-model metadata, circuit breaker and session affinity settings, model aliases, and derived pools), plus the backend-contract-version:

curl https://<your-apim-gateway-host>/version/backend-contract

Important

The primary deployment (main.bicep) is used for the initial implementation only. After the hub is live, the APIM Gateway Upgrade submodule is the standard way to move the accelerator to new releases — applying the new version in place without re-provisioning the APIM service or landing-zone infrastructure.

📎 For version-track semantics, SemVer rules, and per-track migration guidance, see the Release Version Management Guide.

© 2026 Azure AI Landing Zones
