04 - Setup your ServiceNow developer Sandbox

A ServiceNow environment will be required to enable our integration to create and interact with incident tickets. Important: Use your personal email address when creating your ServiceNow Environment

1. Register a new account with ServiceNow:

   https://signon.service-now.com/x_snc_sso_auth.do?pageId=sign-up

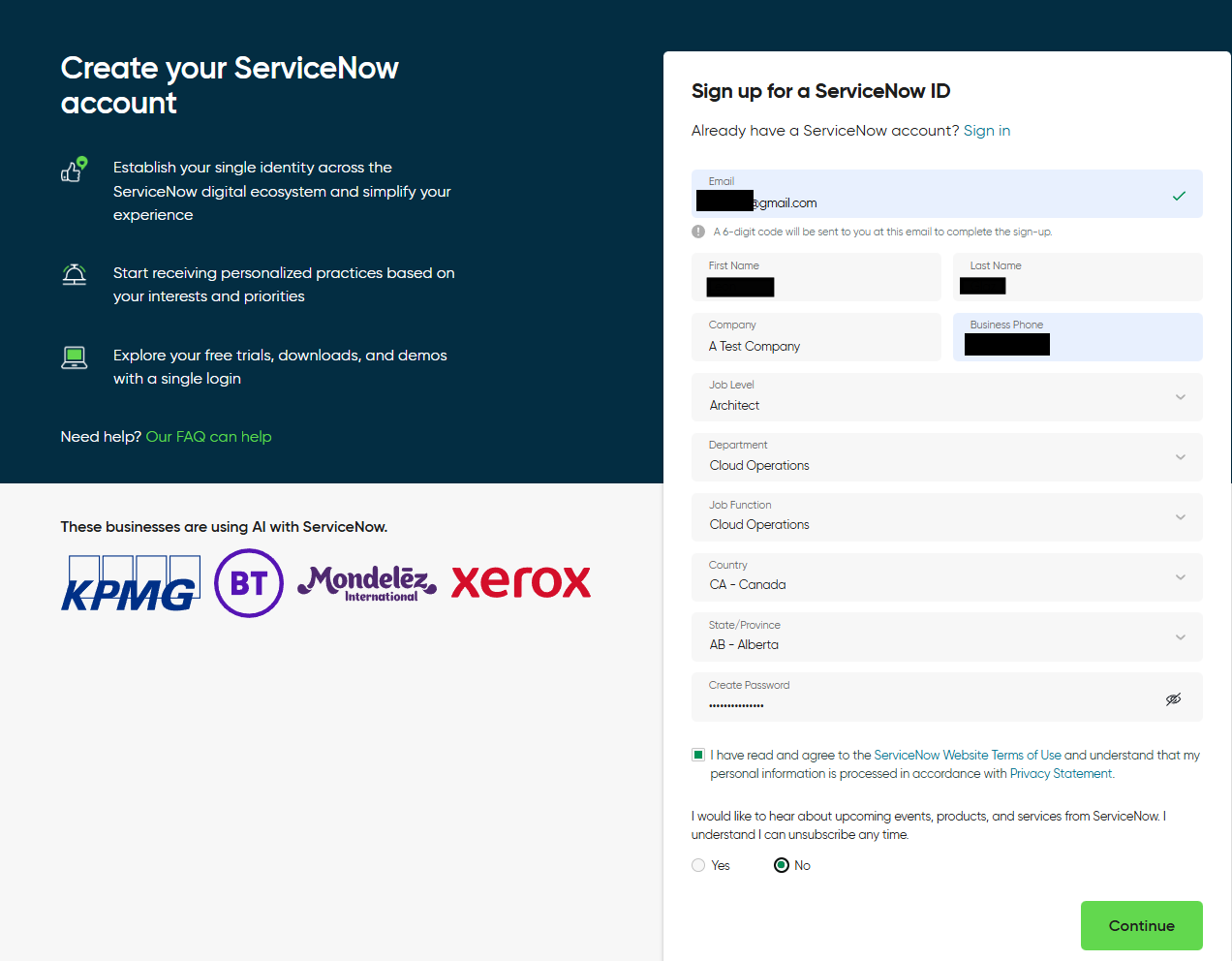

2. Fill out the registration form:

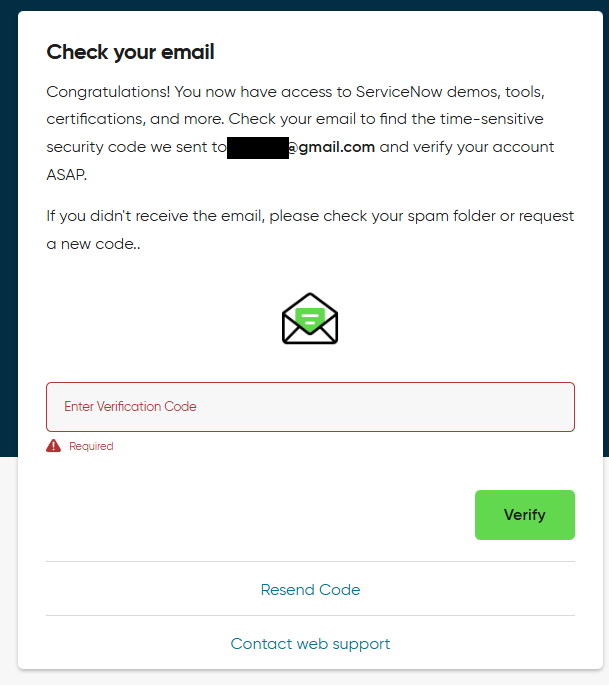

3. You will receive an Email Verification Code:



4. Navigate to the developer portal:

   https://developer.servicenow.com/dev.do

   (if prompted, sign in using the account created above)

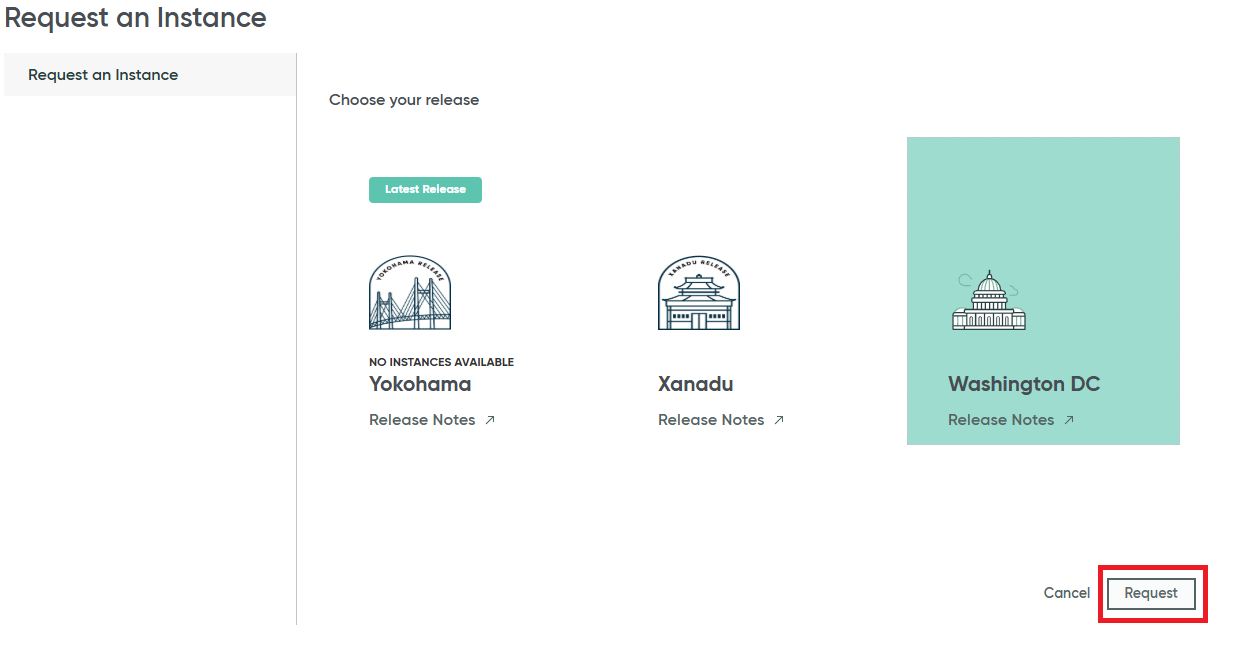

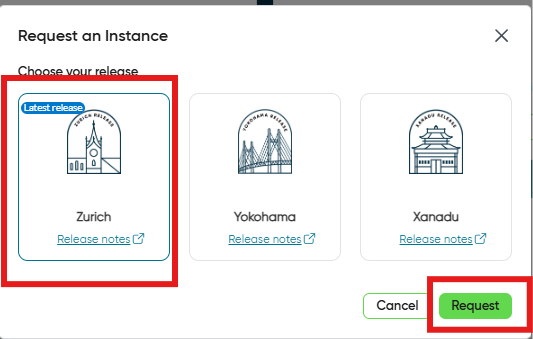

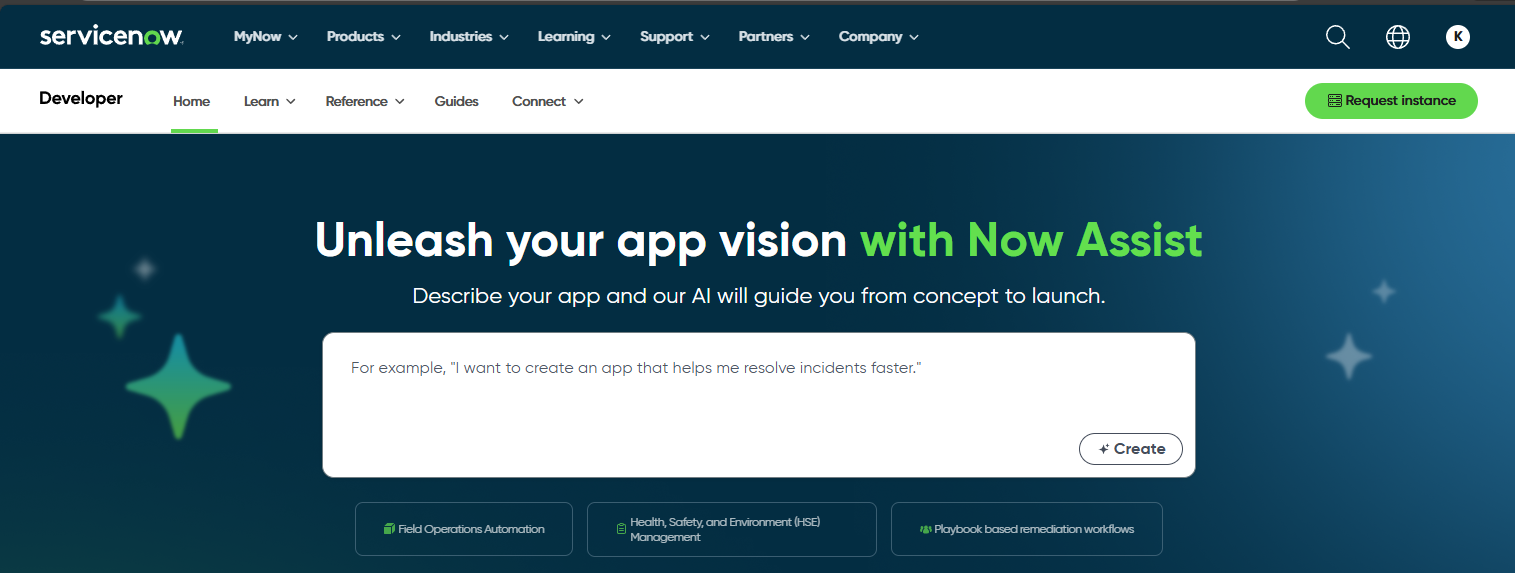

5. Request a Developer Instance

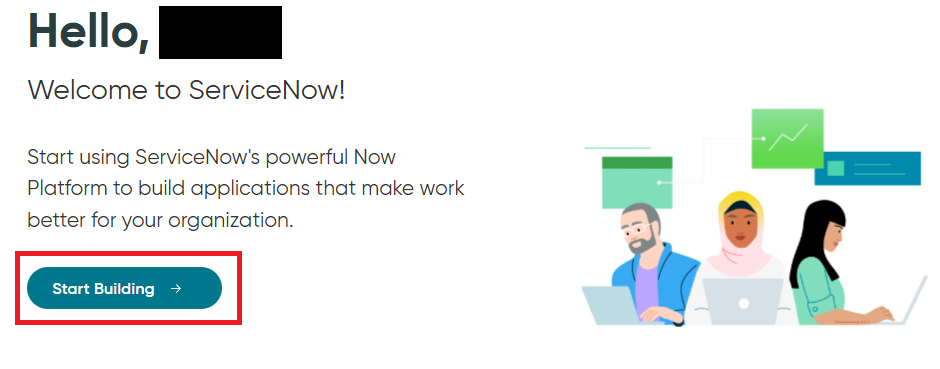

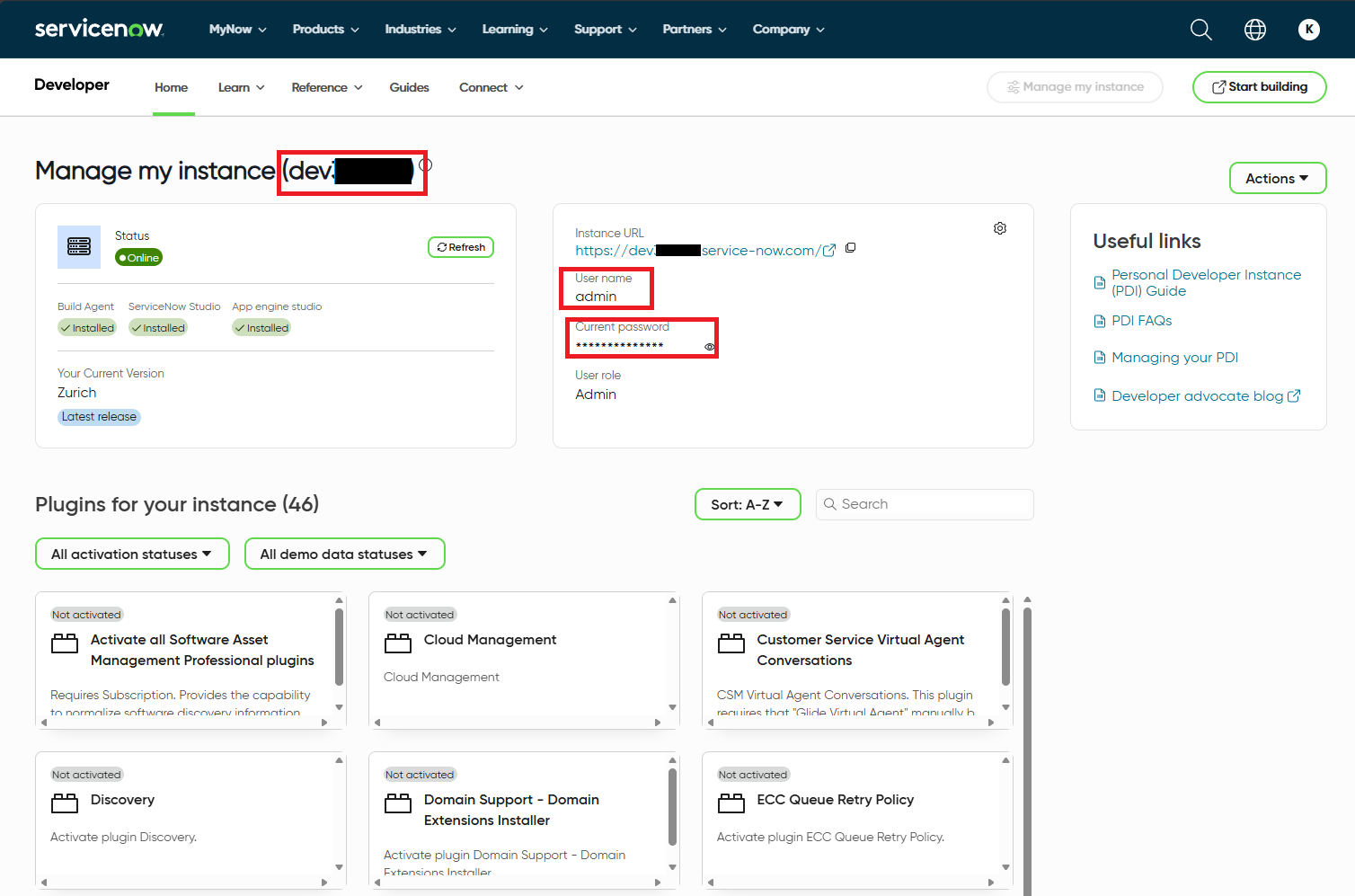

6. Click the Start Building link:



Configure OAuth Authentication

We will need to configure an OAuth API endpoint to enable our logic apps to authenticate to our ServiceNow instance

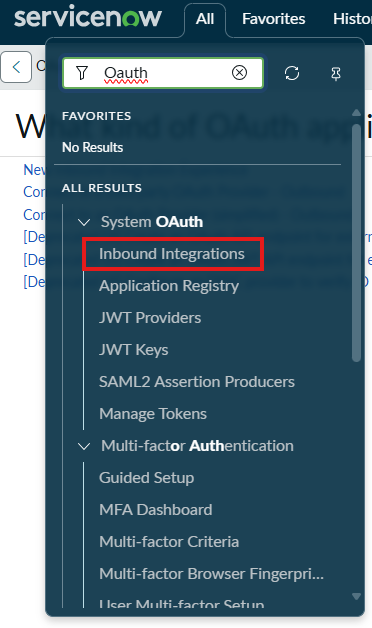

1. Navigate to the OAuth -> Inbound Integrations section

   • Using the top navigation menu

     • Select All
     • Enter OAuth in the search box
     • Select Inbound Integrations

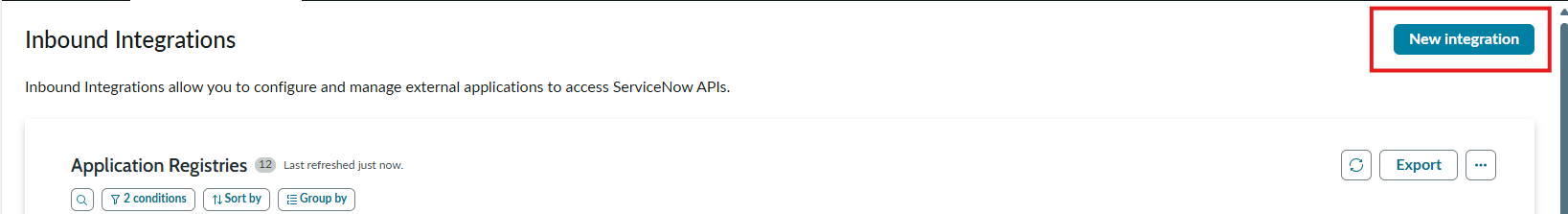

2. Select New Integration

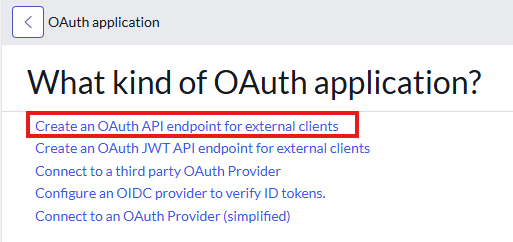

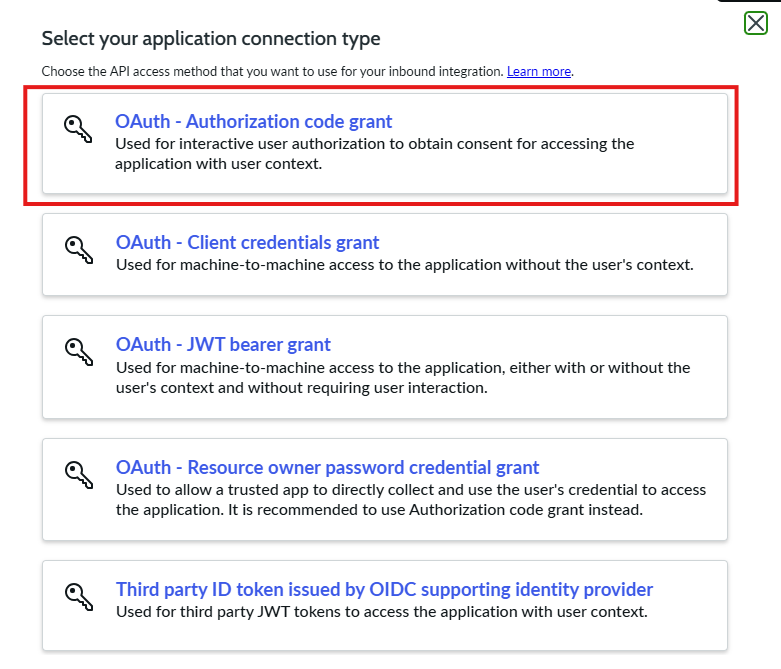

3. Select OAuth - Authorization code grant

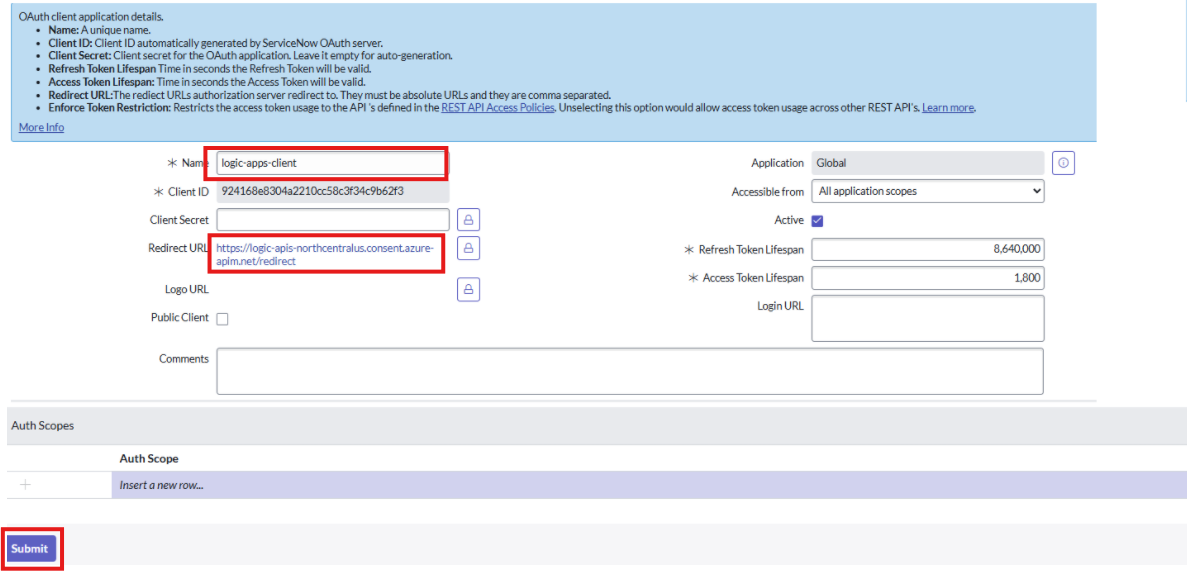

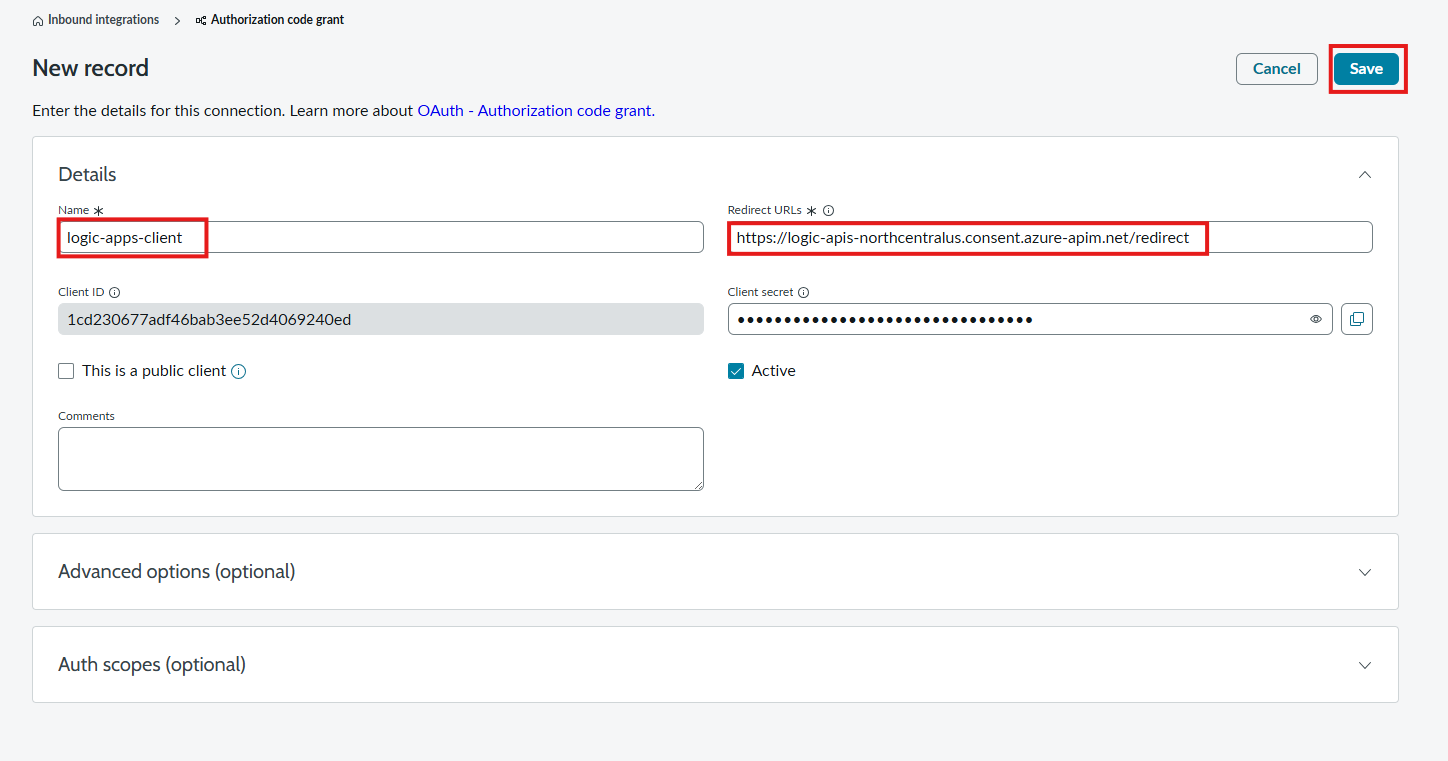

4. Configure the OAuth API endpoint as follows:

   • Name: logic-apps-client

   • Redirect URL: https://logic-apis-northcentralus.consent.azure-apim.net/redirect

     (note: your redirect URL will depend on the region you are deployment your Azure Logic Apps Instance. If you deployed to a different region, you will need to update your Redirect URL: https://logic-apis-{azure-region}.consent.azure-apim.net/redirect)

   • Click Submit



5. Save the Client ID, Client Secret and the Instance Name created in this module for later steps when configuring the Logic Apps connection to ServiceNow
