02 - Debug your autonomous agent in Azure Logic Apps

In this module you will learn how to observe, inspect, and debug the agent built in Module 01. You will distinguish model (reasoning) issues from workflow or integration issues, view the chat transcript, inspect tool executions, and capture deeper telemetry for ongoing monitoring.

By the end, you will:

  • View run history for agent.
  • Inspect agent reasoning steps and tool invocation details.
  • Locate and review model inputs and outputs safely.
  • Differentiate model misalignment vs connector/action failure.

You continue using the same Severe Weather Advisory Agent workflow created earlier.

Prerequisites​

Debugging overview​

An autonomous agent run consists of: agent loop reasoning (decide, tool, respond); tool executions (workflow actions); model interactions (system + context + user prompt and model replies); workflow runtime (triggers, actions, retries, latency, failures). You drill from run status down to specific reasoning or action artifacts to isolate the cause.

The run history or monitoring view for an autonomous agent run consists of the following parts.

Workflow canvas​

The workflow canvas is the same workflow canvas you might know from your other Azure Logic App workflows. The canvas will show and highlight any tools that have ran in that agent task and action(s) inside that tool.

Action panel​

The action panel loads the inputs and outputs of the action you are inspecting. If you are inspecting the agent action, the input will show the most recent input into the agent and the output will show the result of the agent chat completion. There is also a metadata section for agent actions that shows things like token usage for that agent execution.

Agent log​

The agent log is read only and shows the history for that session so far. The agent messages are shown as "Assistant - {agent name}" messages and clicking on the hyperlinked agent name will navigate to the task where that output was given by the agent. It also shows when tools were executed by the agent. The tool names are hyperlinked and clicking on them will navigate you to the task where that tool was executed so you can inspect the inputs and outputs of the action.

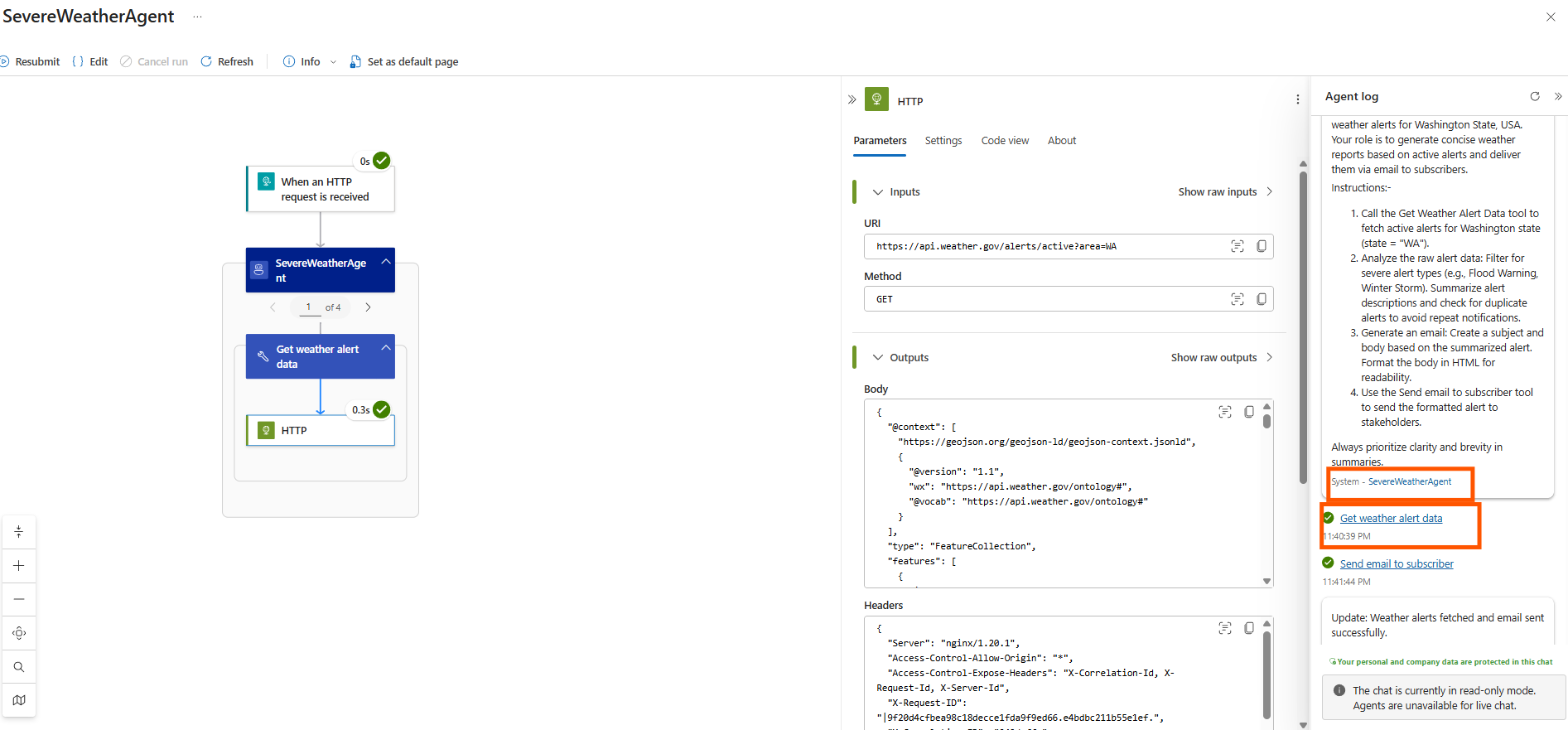

Screenshot shows the different parts of the run history

Step 1 - Open run history​

  1. In the Logic Apps resource, select Workflows.

  2. Select the Severe Weather Advisory Agent workflow.

  3. Open the run history.

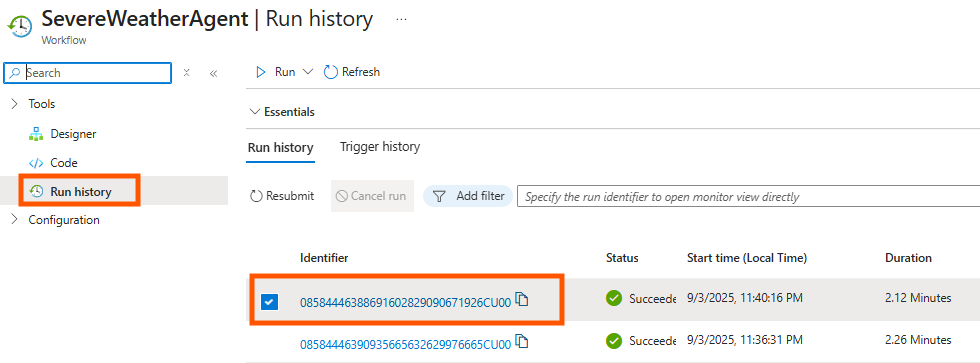

    Screenshot shows the run history for the workflow

Step 2 - Review the agent log​

  1. Once the run history loads, you will see the agent log on the right side for review.

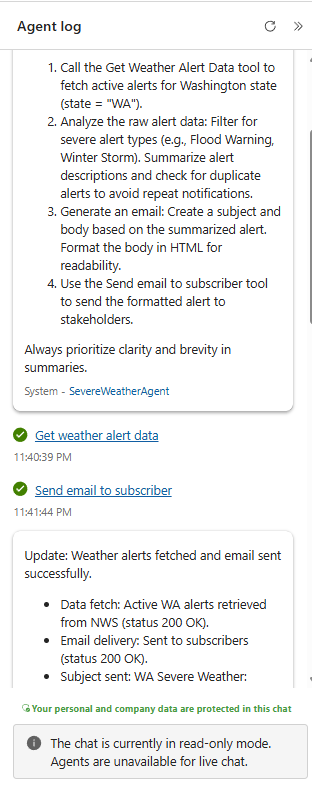

    Screenshot shows the agent log in the run history

Step 3 - Inspect agent reasoning and tool calls​

  1. Click on the tool execution in the agent log.

  2. This will load the step where the agent decided it should make the tool call.

  3. Click on the agent action to inspect it

    • The input will be the agent and user instructions if any. In our case that will be instructions telling the agent how to generate weather report.
    • The output will be the agent making the tool call. You can inspect the "toolArguments" property to see what the agent set the agent parameters to in this execution.
    • The metadata field will let you see the token usage for this request. The prompt tokens are the ones used in the input, this includes the system prompt and the entire chat history passed into the agent, including tool calls and tool results. The completion tokens are the ones used by the model in the response to this call.
    • Inspecting the agent allows you to confirm that the reasoning and execution is working as expected.

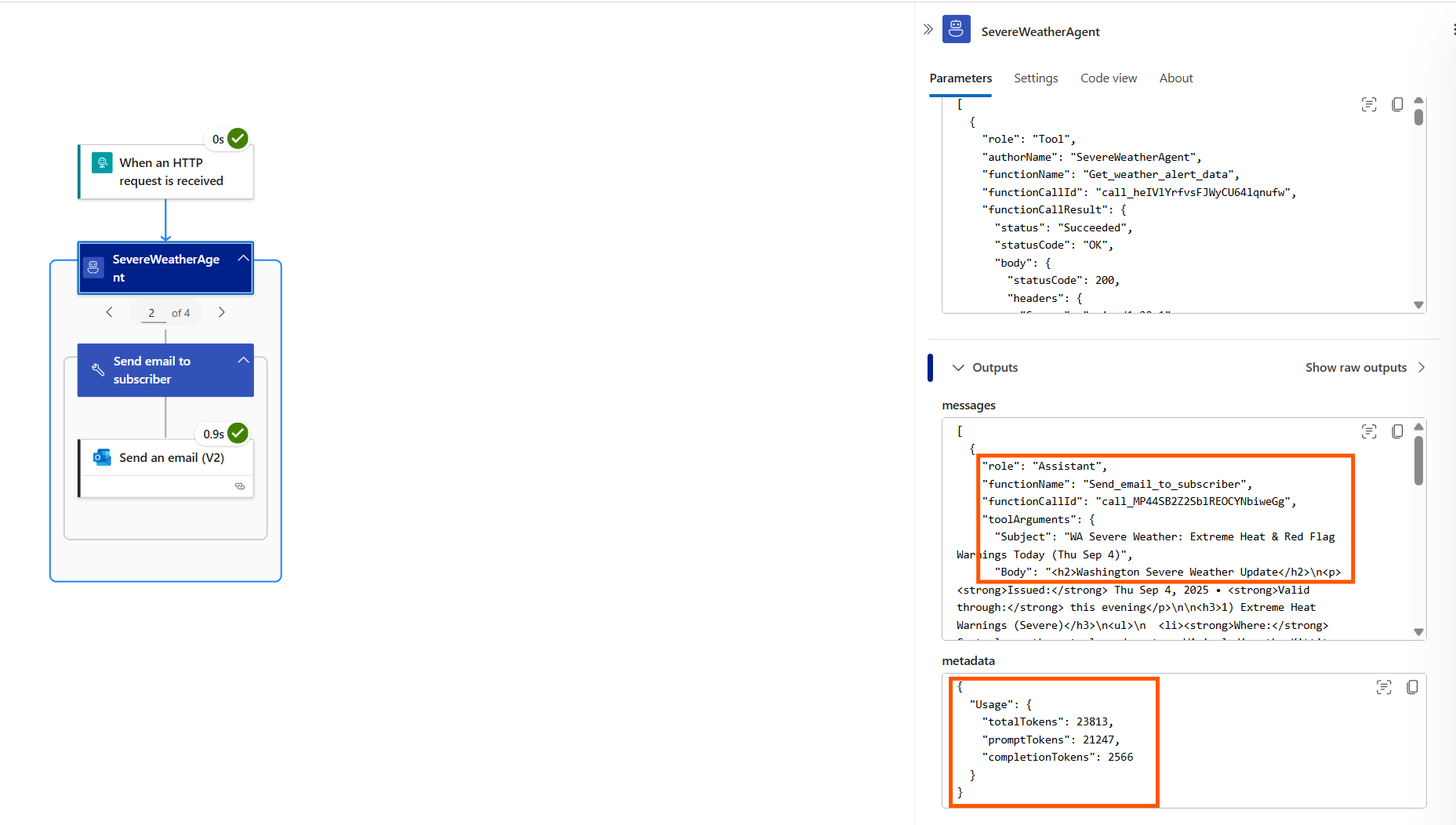

    Screenshot shows inspecting the inputs and outputs of an agent action iteration

  4. Click on the action inside the tool to inspect it

    • The action panel will show the inputs and outputs of the action and lets you inspect them. This allows you to confirm the action works as expected.

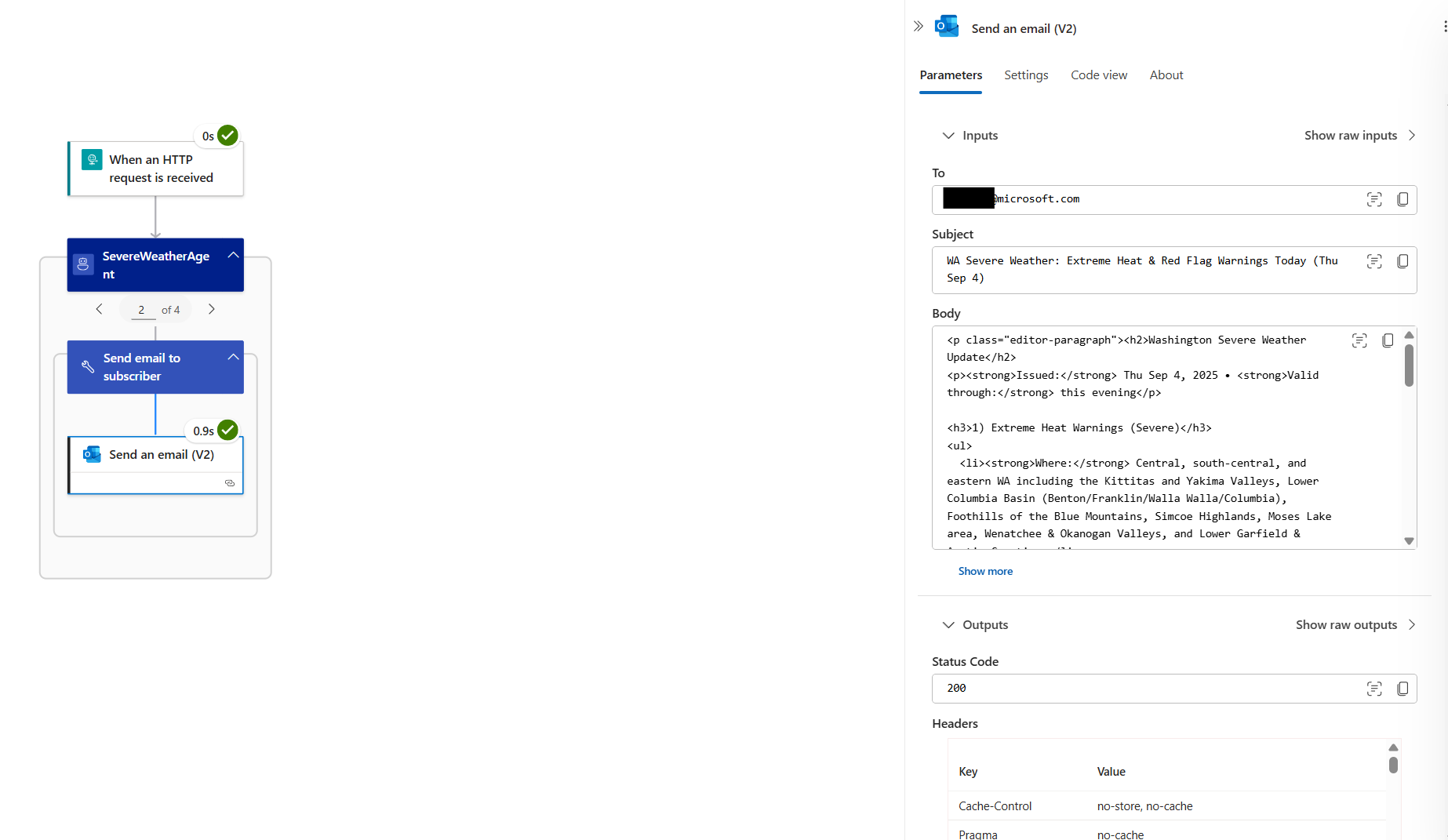

    Screenshot shows inspecting the inputs and outputs of an action inside an agent tool

The monitoring view in Azure Logic Apps lets you debug your agent workflow and inspect every part of its execution. This helps you adjust your workflow as needed, whether it be updating system prompts or clarifying tool names and descriptions.

Summary & next steps​

You inspected run history, transcripts, reasoning steps, tool calls, and model interactions. Next, introduce additional tools, user context, and other patterns.
