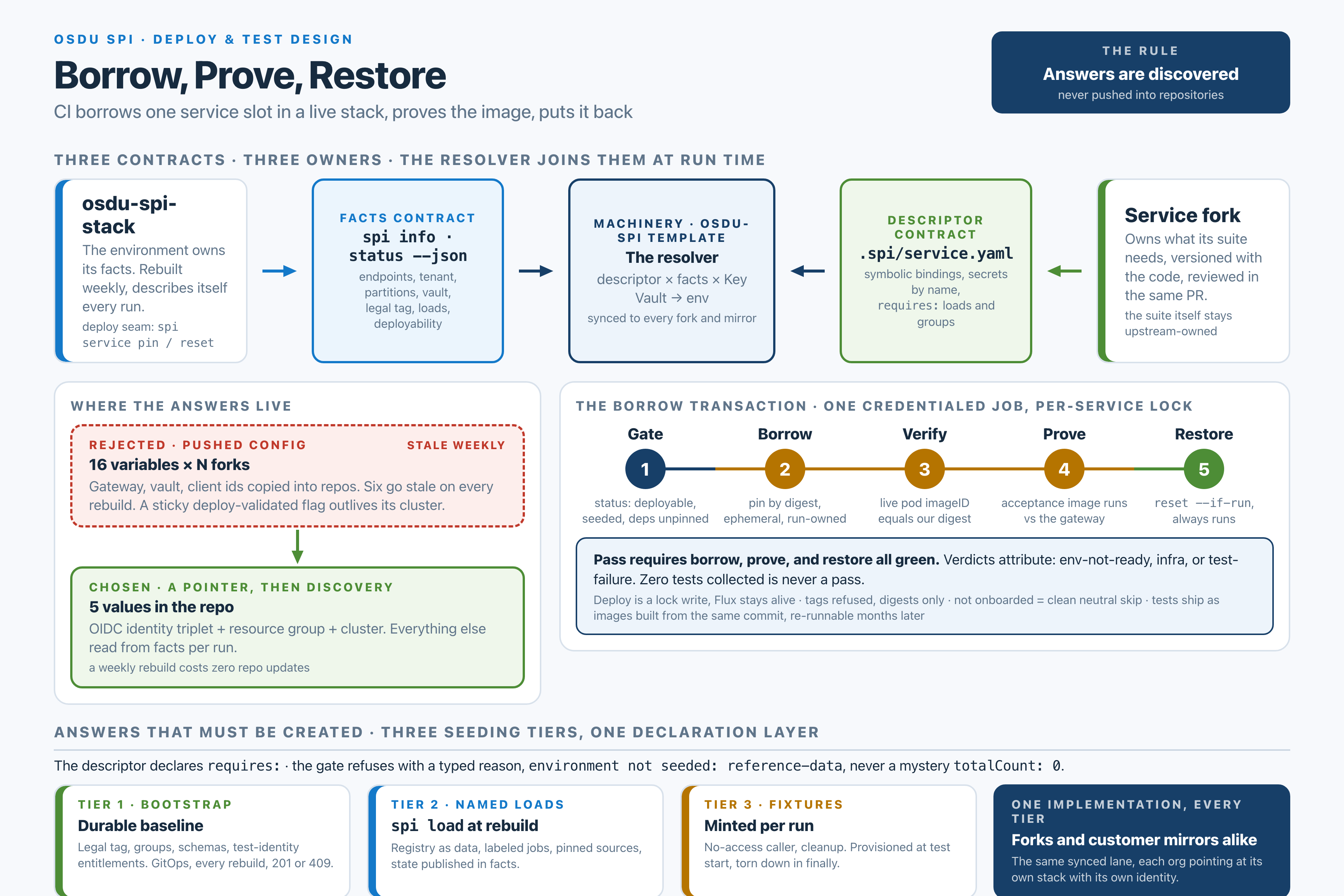

Borrow, Prove, Restore: Deploy & Test Design

After CI builds a service image, borrow the service's slot in a running SPI stack, prove the image with the acceptance suite, and restore the slot. Every environment answer is discovered at run time, never pushed into a repository.

Status: Core lane built; remaining design items are tracked below · designed 2026-08-31, lane shipped 2026-09-10 (ADR-040, ADR-041) · Applies to the filter tier and the customer mirror tier · History in the "deploy & test capability" tracking issue. Where this document and the two records differ, the records govern.

Implemented lane and remaining work

ADR-041 and the validation workflow define the shipped lane. The investigations, principles, seeding model, and rollout plan below also describe intended capabilities; they are not a checklist of implemented gates.

• Eligible same-repository PRs and pushes both borrow, test, and restore. Passing a push run does not leave its image deployed as the environment's canonical.
• The lane resolves descriptor bindings from facts and minted caller tokens. Key Vault materialization is not wired (#175).
• Descriptor requires.loads, requires.groups, and dependencies are not enforced before borrowing (#176); named loads remain stack work (stack #133).
• Live-image verification runs after the pin. A second verification immediately before each suite is not implemented. The undeclared-environment-read tripwire is also pending (#156).

§1 Problem and constraints

The engineering system builds and pushes a digest-addressed service image per commit (the docker-push job in validate.yml). Before this lane, nothing deployed that image or proved it against a live platform. The end state: each internal push or PR deploys its image into the shared osdu-spi-stack AKS environment, runs the service's acceptance suite against it, and returns the environment to its previous state, as a required check.

The hard part is not the deployment. It is the question every OSDU test asks first: where is the service, how do I authenticate, and which identifiers do I use? The subgroup-core wiki names the root cause of a decade of pain:

"The tests are in the repository; the knowledge of how to run them is not."

Upstream keeps the answers in four providers' pipelines; severing those pipelines orphaned the tests. Every requirement below is a constraint on where that knowledge is allowed to live:

• The environment is disposable. The stack is designed to be torn down and rebuilt weekly. Any environment value copied into a repository is stale by construction.
• The machinery is multiplied. Workflows sync from the template to N service forks, and onward to customer mirror forks that point at their own stack with their own credentials. Nothing environment-specific or Microsoft-specific can be baked in.
• Developers come first. The same tests must run against a personal stack instance during development, with no CI in the path.
• Releases must stay provable. "Run the tests that shipped with release X against stack Y" must remain a one-command operation months later.
• CI must stay fast and honest. Fail in seconds with a typed reason when the environment isn't ready; never report green for a suite that didn't run.

§2 Evidence: five investigations, one convergence

Five bodies of prior work were investigated in depth. They sort into two generations of answer to "where do the answers live":

The arbitration finding. The prototype fork and the stack repo carry dueling ADR sets from the same month. The prototype's deploy mechanics (suspend Flux + kubectl set image) are rejected by the stack's newer ADR-031; the stack's config placeholders (operator-set ACCEPTANCE_TEST_SECRET_MAP variables) are rejected by the prototype's newer ADR-043. This design is the union of each repo's latest decision, with the stale half of each dropped.

§3 Principles

1. Answers are discovered, never pushed. A repository holds a pointer to a stack and an identity to reach it, nothing else. Everything environment-shaped is read per run from the stack's versioned facts contract.
2. Contracts are branch-versioned with the code they describe. What a suite needs travels in the service repo, reviewed in the same PR as the test change.
3. One resolver, one agreement point. Where two components could resolve the same answer, one owns it and the other asserts agreement. A mismatch is a typed infra error, never a silent preference.
4. Digests, not tags. Deploy by digest, verify the live pod's imageID post-rollout and again pre-test. "Did I test what I built" must be answerable.
5. Zero long-lived secrets. GitHub OIDC → federated managed identity; tokens minted per run; Key Vault reads at run time; secret references in contracts, never values.
6. Fail closed, with typed reasons. Maintenance, not-seeded, not-onboarded, dependency-pinned: each is a distinct machine-readable refusal, reported in seconds, never a mystery test failure.
7. One implementation for every tier. The same synced workflows serve Microsoft filter-tier forks and customer mirror forks; the pointer and identity are the only per-org values.

§4 Architecture: three contracts, three owners

The same three-owner split subgroup-core proved: the environment owns its facts, the service owns its contract, the engineering system owns the machinery. Because the acceptance suite (<svc>-acceptance-test) is upstream-owned and regenerated on every sync, nothing fork-specific can live inside it. The contract lives beside it, in the fork-owned lane.

The descriptor, concretely

# .spi/service.yaml: fork-owned, reviewed with the code, survives any stack rehome
schemaVersion: 3
service: { name: partition, archetype: java-maven-azure }
tests:                                  # named suites of one shape; acceptance is required
  acceptance:
    type: maven
    path: partition-acceptance-test     # upstream-maintained module, kept by the filter
    mavenArguments: [test]
    bindings:                           # symbols, never values; resolved against facts per run
      HOST:                  { source: gateway }
      DATA_PARTITION_ID:     { source: partition }
      PRIVILEGED_USER_TOKEN: { source: token }     # the run's minted bearer (RESOLVER_TOKEN)
    timeoutMinutes: 15
  integration:                          # the fork-owned provider suite, selectable by name
    type: maven
    path: testing
    mavenArguments: [-pl, partition-test-azure, -am, test]
    bindings:
      ENVIRONMENT:        { source: static, value: dev }
      PARTITION_BASE_URL: { source: gateway, suffix: / }
      MY_TENANT:          { source: partition }
      INTEGRATION_TESTER_ACCESS_TOKEN: { source: token }
    timeoutMinutes: 20

Every suite may also carry keyVaultBindings (env name to Key Vault secret name), requires (loads, groups), and dependencies; the partition suites need none of them.

Ports the prototype's ADR-043 contract (reserved-name blocklist, argv-token Maven args, no identity/cluster selection) and subgroup-core's closed-vocabulary posture: an unknown source kind halts loudly. Resolution precedence: explicit env → facts → declared default; templates render last, so the same contract runs in CI, against a personal stack, or fully offline. token, memberToken, and noAccessToken are the caller inputs with fixed names, RESOLVER_TOKEN, RESOLVER_MEMBER_TOKEN, and RESOLVER_NO_ACCESS_TOKEN, so the lane and a developer supply the bearers the same way whatever a suite calls them.

What the repository holds, in full

That is the entire per-repo surface. The prototype's other ~13 pushed variables (GATEWAY_URL, KEYVAULT_NAME, STORAGE_ACCOUNT_NAME, AAD_CLIENT_ID, K8S_*, …) all become facts read per run, so a weekly rebuild costs zero reconciliation across N forks and M mirrors.

§5 The CI lane: one borrow transaction

One credentialed job, deploy-test, chained on docker-push in validate.yml behind a gate job that carries the ADR-036 trust clause (push or same-repository pull request; never Dependabot, pull_request_target, or fork_upstream) and always says why the lane did not run. It runs on the fork's own pull requests and again on the push after merge, since the merge is a new build with a new digest. Concurrency group spi-stack-<service>, cancel-in-progress: false.

gate    → deploy-gate                 trusted event? onboarded? descriptor? image pushed?
install → the spi release the environment runs (environment.stackVersion from spi status)
gate    → spi status --json          deployable? (descriptor requirements are not yet enforced)
borrow  → spi service pin --image ghcr…@sha256:… --ephemeral --run-id $GITHUB_RUN_ID
verify  → spi service verify         poll until the live pod imageID == our digest
mint    → OIDC exchange as the deploy identity (AZURE_CLIENT_ID)         → RESOLVER_TOKEN
        → OIDC exchange as deploy_identity.member_client_id                → RESOLVER_MEMBER_TOKEN
        → OIDC exchange as deploy_identity.no_access_client_id             → RESOLVER_NO_ACCESS_TOKEN
bind    → resolver --suite <name>: descriptor × facts × tokens → <name>.env
prove   → docker run --env-file <name>.env -e SUITE_DIR=<path> <svc>-acceptance@<digest>   per suite
restore → spi service reset --if-run $GITHUB_RUN_ID           (if: always)
verdict → validation-summary: one table; fails on any failed or cancelled build, push, or deploy job

• Deploy is a lock write, not a kubectl mutation. spi service pin updates the osdu-image-lock ConfigMap under compare-and-set; Flux re-renders the HelmRelease. GitOps stays alive the whole time: no suspended-Flux CI mode, no weekly first-deploy failure, no loss of self-healing (stack ADR-031: "a lock write is the whole deploy"). The pin returns at the lock write (the fork identity holds no Flux write; the lock's watch label triggers reconciliation), so the lane polls spi service verify until the digest is live or the borrow budget expires. A typed lock_mismatch from verify means the pin was replaced mid-borrow.
• Restore is ownership-checked. reset --if-run restores the recorded canonical only while the live pin still belongs to this run, so a crashed run can't be "restored" over a newer sibling. The Restore step runs after eligible PR and push tests, including failures, once CLI installation succeeded. A failed runner can still strand a pin; restore is attempted, not guaranteed. Canonical advancement is separate from testing a push image.
• Not-onboarded is a visible skip. When the pointer variables are absent, the gate reports "repository is not onboarded to a stack" and the lane does not run; the summary check stays green. The same ruleset serves every fork, onboarded or not.
• The gate replaces the sticky boolean. spi status is consulted every run. The lane polls deployability every 20 seconds for up to ten minutes, reporting the status reason if the environment remains blocked, including maintenance. Borrow retries a pin refusal while status is not deployable on the same bounded schedule.
• Verdicts carry attribution (cimpl-test's taxonomy): env-not-ready, infra, and test-failure are distinct outcomes; a suite that collects zero tests is never a pass; an interrupted run is never a pass.

§6 Answers that must be created: the seeding tiers

Some answers can't be discovered because nothing creates them: the two gaps found in the stack (no legal tag, no test-caller entitlements) and the shapeless per-service setup.sh problem both engines left open. cimpl-stack's separation (its ADR-016 and ADR-025) supplies the tier model; this design adds the declaration layer that nobody built.

Boundary rule (cimpl-stack ADR-025, adopted verbatim): persistent state → a declared load; per-run identity → an ephemeral fixture.

Planned: declared data dependencies. The descriptor's requires block names loads and groups; the planned lane gate checks them against published load facts and refuses with a typed reason (environment not seeded: reference-data) instead of the industry-standard failure mode, an acceptance test returning totalCount: 0 and a human reading a runbook. For the eight core services, Tier 1 alone covers most suites; requires.loads is expected mainly for search and indexer, which keeps rebuilds and CI cheap.

§7 Identity

The stack implements the deploy identity and onboarding trust from ADR-032:

• One deploy identity per environment, a user-assigned managed identity in the environment's resource group, with one federated credential per trusted fork whose subject is the one GitHub signs for repo:<org>/<fork>:environment:spi-stack. The GitHub environment is used for identity protection, not config storage, and admits every branch: write access to the fork is the boundary, and a pull request from another repository never receives an OIDC token.
• Least-privilege Azure roles: AKS Cluster User + Key Vault Secrets User. Namespace-scoped Kubernetes Roles: lock-object patch restricted by resourceNames to osdu-image-lock; read-only over deployments/pods/logs; no create, no delete, no secrets verbs.
• Test callers, secretless: the positive-path token is minted per run as the deploy identity for the audience the facts publish as azure.token_audience; the Azure-provider services admit any app-only token from the tenant, so no entitlements seeding is needed for the suites built so far. A developer mints the same token with spi token. Tokens for the stack's member identity, a plain user with no admin rights, and its no-access identity, a caller with no entitlements, are minted the same way and reach bindings with source: memberToken and source: noAccessToken as RESOLVER_MEMBER_TOKEN and RESOLVER_NO_ACCESS_TOKEN. No long-lived secrets anywhere.
• Onboarding = spi onboard <service> --repo <org>/<fork>: the federated credential on all three identities, the open spi-stack environment, the five repository values, and the fork's entry in the cluster's trusted-repository projection. Nothing arms afterwards; the lane runs on the next trusted event.

Customer mirrors: the identical machinery arrives by mirror sync. A customer runs their own stack (same CLI, same facts contract), sets their own pointer + identity triplet at adoption time (an Adopt Fork extension), and pins their own GHCR images. External-fork PR heads never reach the credentialed lane; the existing ADR-036 gate already guarantees it.

§8 Tests as images; the developer and release loops

CI builds <svc>-acceptance:<sha> beside the service image, from the same commit, with dependencies prewarmed at build time (dependency:go-offline), subgroup-core's proven pattern and its rationale: "run the tests that shipped with release X" must stay one command months later. The image pins the suite source and a warmed local repository, not dependency resolution: the run is online, and version ranges in the upstream graph can still resolve differently later. The engineering system owns the canonical acceptance Dockerfile, exactly as it owns the service Dockerfile (ADR-037). The suite runs on the GitHub runner via docker run --env-file against the gateway; inside the cluster it would need create-verbs the fork identity deliberately lacks.

The developer loop uses the same three contracts with no CI in the path:

# once: stand up or connect to your own stack
spi connect -g my-rg -c my-cluster && spi status

# the callers: the environment's deploy, member, and no-access identities, minted through the cluster
export RESOLVER_TOKEN=$(spi token)
export RESOLVER_MEMBER_TOKEN=$(spi token --member)
export RESOLVER_NO_ACCESS_TOKEN=$(spi token --no-access)

# resolve answers: descriptor × facts × vault → .env  (bind warns; run refuses: two audiences)
spi info --json > facts.json
python3 .github/actions/acceptance-resolver/resolve.py --mode bind --suite acceptance \
  --descriptor .spi/service.yaml --facts facts.json --env-file .env

# the env file is `docker run` data, never shell code: mvn does not read it,
# and sourcing it would evaluate secret values as shell. consume it through
# the suite image, exactly as CI does (rebuild the image locally to iterate):
docker run --env-file .env ghcr.io/<org>/partition-acceptance:<sha>

# another suite from the same image: its own bindings, its own env file
python3 .github/actions/acceptance-resolver/resolve.py --mode bind --suite integration \
  --descriptor .spi/service.yaml --facts facts.json --env-file integration.env
docker run --env-file integration.env -e SUITE_DIR=testing ghcr.io/<org>/partition-acceptance:<sha> -pl partition-test-azure -am test

# explicit env always wins: point the base URL at a laptop service
PARTITION_BASE_URL=http://host.docker.internal:8080/ python3 .github/actions/acceptance-resolver/resolve.py --mode bind ... \
  && docker run --env-file .env ghcr.io/<org>/partition-acceptance:<sha>

Release verification: release.yml tags the acceptance image alongside the service image, so "prove release X on stack Y" is one workflow_dispatch with two inputs, or one local docker run. An optional nightly scheduled run re-converges the fleet against the shared stack.

The drift tripwire: a build-stage static check (no cluster, no secrets, safe on any PR) fails the build when suite code reads an environment variable the descriptor doesn't declare, printing the file, the line, and a paste-ready declaration. New requirements surface at review time, not as a red deploy three repos downstream.

§9 Decision register

Settled = the evidence decides it (a source proved it, or the counterpart approach demonstrably failed). Judgment call = this document decides it and review can flip it without unraveling the rest.

§10 Work split and sequencing

Azure/osdu-spi-stack: ephemeral pin surface (pin --image/--ephemeral/--run-id, service verify, reset --if-run; shipped, stack PR #134) · spi onboard + per-fork UAMI, federated credential, namespace Roles (ADR-032) · Tier-1 bootstrap: legal-tag port + test-identity ensure step · spi load + YAML registry + load facts · weekly reset · loads/legalTag additions to the facts envelope.

Azure/osdu-spi (template): descriptor schema v3 + resolver action (port of prototype ADR-043's resolver, generalized from repo-vars to facts) · acceptance-image build + canonical acceptance Dockerfile · the borrow-transaction job in validate.yml + required-check summaries · drift tripwire · release/dispatch lanes · ADRs (resolving the 038/039 numbering collision with the prototype's set) · Adopt Fork extension for mirror pointers.

Service forks: one .spi/service.yaml each, typically seven to ten symbolic bindings.

Phases (1 and 2 complete on partition, 2026-09-10):

1. Prove the contracts on partition, by hand. Descriptor + resolver + acceptance image on osdu-spi-partition; bind and run manually against the shared stack using today's built surface. Exit: a green partition acceptance run whose every answer came from facts, with zero pushed environment variables.
2. Build the seams. Stack: ephemeral pin surface, onboarding, Tier-1 bootstrap, spi token. Template: the transactional lane wired into validate.yml, the gate that explains a skip, the summary as the required check. Exit: partition PRs run borrow → prove → restore unattended.
3. Arm and harden. Required checks armed by onboarding verification; drift tripwire on; D9 dependency gate on; spi load + requires for search/indexer; nightly run; descriptors rolled out across the remaining forks. Exit: the fleet gates merges on proven images; a weekly rebuild needs no repo-side action.
4. Extend to the mirror tier. Adopt Fork collects the pointer + identity; docs for customer stack onboarding; release-verification dispatch lane. Exit: a customer proves their change green in their environment with the same machinery, untouched.

§11 Open items and risks

• Coordination before code. This design arbitrates between the prototype's ADRs and the stack's ADRs; both authors should review the "union of latest decisions" framing (§2) before either repo lands its half. The prototype's ADR numbering collides with the template's (038/039 mean different things); renumber during porting.
• Tier-2 initial scope. Registry + spi load + load facts are required for §6; the mirror/digest provenance work (D12) can fast-follow, but unpinned community-master data will eventually cost a debugging day, so it should not slip past Phase 3.
• Entitlements for other services. Partition admits any app-only token from the tenant, so the deploy identity needs no seeding there. Services that check entitlements need the stack's members Job to seed the deploy identity before their suites can join the lane, and a suite that declares NO_ACCESS_USER binds its NO_ACCESS_USER_TOKEN with source: memberToken. The no-access identity stays unseeded.
• Runner egress. D6 assumes the gateway is reachable from GitHub-hosted runners. True today (public FQDN); if the stack ever goes private-endpoint, revisit D6 (self-hosted runners or the in-cluster Job alternative).
• Chart-contract changes don't ride the image seam. A service change needing a new chart env var lands a stack PR first, then the fork PR deploys against the upgraded environment (stack ADR-031's sequencing note). Document this in the fork contribution guide.
• Concurrency starvation. Per-service groups with cancel-in-progress: false can queue long chains on a busy fork; descriptor timeoutMinutes caps each hold, and the gate's typed refusals keep waits explainable.

§12 Source map
