Module 12 - Container Optimization¶

Module Duration

45-60 minutes

Objective¶

In this module, we will accomplish two objectives:

Learn how to reduce container footprints.
Build & deploy updated, optimized images to Azure.

Module Sections¶

From the VS Code Terminal tab, open developer command prompt or PowerShell terminal in the project folder TasksTracker.ContainerApps (root):
1
cd ~\TasksTracker.ContainerApps
Restore the previously-stored variables by executing the local script. The output informs you how many variables have been set.
1
.\Variables.ps1

1. Optimizing Containers¶

Azure Container Apps makes it simple to quickly become effective with containers. But even a managed container platform requires hygiene and can benefit greatly from smaller containers.

In this module, we will look into the benefits of optimized containers such as:

Smaller images to store and transfer to and from the container registry.
Potentially less Common Vulnerabilities and Exposures (CVEs).
No bloat and unnecessary components such as shells, package managers, etc.

While available prior to .NET 8, the general availability introduction of .NET 8 in November 2023 came with an expanded focus on container optimization and a move away from general-purpose containers. You can apply similar steps for .NET versions newer than 8, but we omit them here for brevity.

Please ensure you have the Docker daemon ready. Running Docker Desktop does it.

1.1 The Status Quo¶

Let's focus on our first project, the Backend API. This is an ASP.NET Core application.

Our original Dockerfile looks like this:

Backend.Api Dockerfile

FROM mcr.microsoft.com/dotnet/aspnet:8.0 AS base
WORKDIR /app
EXPOSE 8080

ENV ASPNETCORE_URLS=http://+:8080

USER app
FROM mcr.microsoft.com/dotnet/sdk:8.0 AS build
ARG configuration=Release
WORKDIR /src
COPY ["TasksTracker.TasksManager.Backend.Api/TasksTracker.TasksManager.Backend.Api.csproj", "TasksTracker.TasksManager.Backend.Api/"]
RUN dotnet restore "TasksTracker.TasksManager.Backend.Api/TasksTracker.TasksManager.Backend.Api.csproj"
COPY . .
WORKDIR "/src/TasksTracker.TasksManager.Backend.Api"
RUN dotnet build "TasksTracker.TasksManager.Backend.Api.csproj" -c $configuration -o /app/build

FROM build AS publish
ARG configuration=Release
RUN dotnet publish "TasksTracker.TasksManager.Backend.Api.csproj" -c $configuration -o /app/publish /p:UseAppHost=false

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "TasksTracker.TasksManager.Backend.Api.dll"]

cd ~\TasksTracker.ContainerApps

docker build -t backend-api-status-quo -f .\TasksTracker.TasksManager.Backend.Api\Dockerfile .

docker image list

This yields a sizable image at 222 MB!

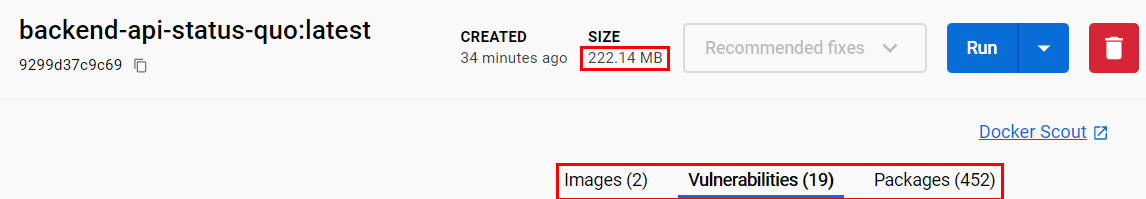

This image is comprised of two images, 452 packages, and has 19 vulnerabilities.

1.2. Chiseled Images¶

Microsoft and Ubuntu's creator, Canonical, collaborated on the concept of a chiseled image for .NET. Take a general-purpose base image and start chiseling away until you are left with an image that contains nothing more than the bare necessities to run your workload. No shell, no package manager, no bloat.

Backend.Api Dockerfile.chiseled

FROM mcr.microsoft.com/dotnet/aspnet:8.0-jammy-chiseled AS base
WORKDIR /app
EXPOSE 8080

ENV ASPNETCORE_URLS=http://+:8080

USER app
FROM mcr.microsoft.com/dotnet/sdk:8.0-jammy AS build
ARG configuration=Release
WORKDIR /src
COPY ["TasksTracker.TasksManager.Backend.Api/TasksTracker.TasksManager.Backend.Api.csproj", "TasksTracker.TasksManager.Backend.Api/"]
RUN dotnet restore "TasksTracker.TasksManager.Backend.Api/TasksTracker.TasksManager.Backend.Api.csproj"
COPY . .
WORKDIR "/src/TasksTracker.TasksManager.Backend.Api"
RUN dotnet build "TasksTracker.TasksManager.Backend.Api.csproj" -c $configuration -o /app/build

FROM build AS publish
ARG configuration=Release
RUN dotnet publish "TasksTracker.TasksManager.Backend.Api.csproj" -c $configuration -o /app/publish /p:UseAppHost=false

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "TasksTracker.TasksManager.Backend.Api.dll"]

Create a new file, Dockerfile.chiseled in the Backend Api root directory, then build the image again:

docker build -t backend-api-chiseled -f .\TasksTracker.TasksManager.Backend.Api\Dockerfile.chiseled .

docker image list

Our image now stands at a much smaller 115 MB - a drop of 107 MB and a size just 51.8% of the status quo image!

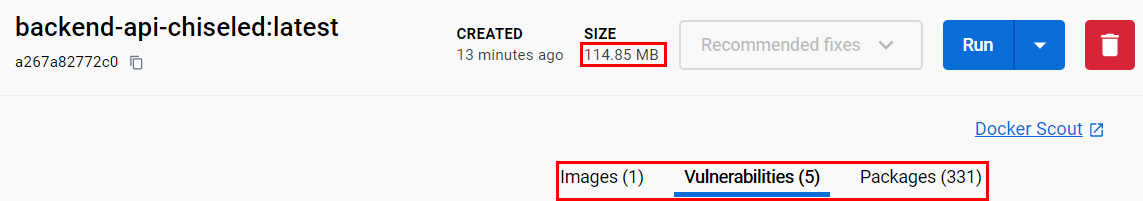

This image is comprised of one image, 331 packages, and has five vulnerabilities.

1.3 Chiseled & Ahead-of-time (AOT) Compilation¶

Ahead-of-time (AOT) compilation was first introduced with .NET 7. AOT compiles the application to native code instead of Intermediate Language (IL). This means that we must have foresight as to what platform will be hosting the application. Our process is simplified by the fact that containers in Azure Container Apps are only Linux-hosted. By using native code, we will bypass the just-in-time (JIT) compiler when the container executes, which means we will have faster startup and a smaller memory footprint. It also means these images can run in environments where JIT compilation may not be permitted.

Backend.Api Dockerfile.chiseled.aot

FROM mcr.microsoft.com/dotnet/nightly/runtime-deps:8.0-jammy-chiseled-aot AS base
WORKDIR /app
EXPOSE 8080

ENV ASPNETCORE_URLS=http://+:8080

USER app
FROM mcr.microsoft.com/dotnet/nightly/sdk:8.0-jammy-aot AS build
ARG configuration=Release
WORKDIR /src
COPY ["TasksTracker.TasksManager.Backend.Api/TasksTracker.TasksManager.Backend.Api.csproj", "TasksTracker.TasksManager.Backend.Api/"]
RUN dotnet restore "TasksTracker.TasksManager.Backend.Api/TasksTracker.TasksManager.Backend.Api.csproj"
COPY . .
WORKDIR "/src/TasksTracker.TasksManager.Backend.Api"
RUN dotnet build "TasksTracker.TasksManager.Backend.Api.csproj" -c $configuration -o /app/build

FROM build AS publish
ARG configuration=Release
RUN dotnet publish "TasksTracker.TasksManager.Backend.Api.csproj" -c $configuration -o /app/publish /p:UseAppHost=false

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "TasksTracker.TasksManager.Backend.Api.dll"]

Create a new file, Dockerfile.chiseled.aot in the Backend Api root directory, then build the image again:

docker build -t backend-api-chiseled-aot -f .\TasksTracker.TasksManager.Backend.Api\Dockerfile.chiseled.aot .

docker image list

Nightly Images

As the name implies, these images are produced nightly. They are not yet images that are versioned and stable in the registry. Your mileage may vary.

Another massive reduction takes the image down to a mere 16 MB - a total drop of 206 MB and a size just 7.2% of the status quo image!

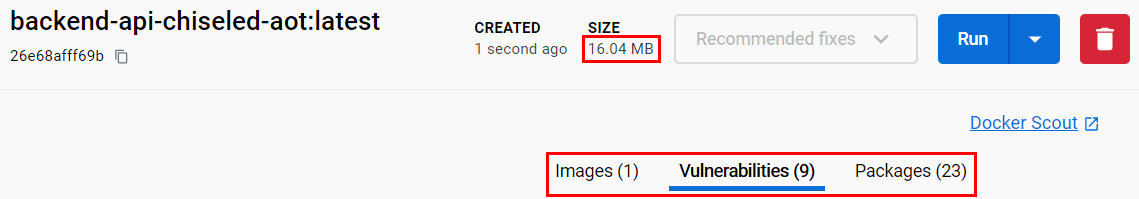

This image is comprised of one image, just 23 packages, and has nine vulnerabilities.
Notably, the four additional vulnerabilities are in the openssl 3.0.2 package in this image.

1.4 Deploying the new Status Quo¶

While the image is vastly reduced, what hasn't changed is the functionality of the API. Whether you are executing it locally or deploying to Azure, the Backend API will continue to function as it always has. However, now it has less vulnerabilities, less time to transfer from the registry, less startup time, and less of a memory footprint. Furthermore, 16 MB is the uncompressed image. With compression, we are likely to continue dropping in size.

Let's update our existing Backend API container app with a new build and revision:

## Build Backend Service on ACR and Push to ACR

az acr build `
--registry $AZURE_CONTAINER_REGISTRY_NAME `
--image "tasksmanager/$BACKEND_API_NAME" `
--file 'TasksTracker.TasksManager.Backend.Api/Dockerfile.chiseled.aot' .

# Update Backend API App container app and create a new revision
az containerapp update `
--name $BACKEND_API_NAME  `
--resource-group $RESOURCE_GROUP `
--revision-suffix v$TODAY-6 `
--set-env-vars "ApplicationInsights__InstrumentationKey=secretref:appinsights-key"

Verify that the application continues to work:

1	`$FRONTEND_UI_BASE_URL`

2. Optimizing Frontend UI & Backend Service Containers¶

As all three projects use ASP.NET Core, we can follow the same approach with these two projects as well.how much you are able to reduce!

2.1 Frontend UI¶

2.1.1 The Status Quo¶

Our original Dockerfile looks like this:

Frontend.Ui Dockerfile

FROM mcr.microsoft.com/dotnet/aspnet:8.0 AS base
WORKDIR /app
EXPOSE 8080

ENV ASPNETCORE_URLS=http://+:8080

USER app
FROM mcr.microsoft.com/dotnet/sdk:8.0 AS build
ARG configuration=Release
WORKDIR /src
COPY ["TasksTracker.WebPortal.Frontend.Ui/TasksTracker.WebPortal.Frontend.Ui.csproj", "TasksTracker.WebPortal.Frontend.Ui/"]
RUN dotnet restore "TasksTracker.WebPortal.Frontend.Ui/TasksTracker.WebPortal.Frontend.Ui.csproj"
COPY . .
WORKDIR "/src/TasksTracker.WebPortal.Frontend.Ui"
RUN dotnet build "TasksTracker.WebPortal.Frontend.Ui.csproj" -c $configuration -o /app/build

FROM build AS publish
ARG configuration=Release
RUN dotnet publish "TasksTracker.WebPortal.Frontend.Ui.csproj" -c $configuration -o /app/publish /p:UseAppHost=false

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "TasksTracker.WebPortal.Frontend.Ui.dll"]

cd ~\TasksTracker.ContainerApps

docker build -t frontend-ui-status-quo -f .\TasksTracker.WebPortal.Frontend.Ui\Dockerfile .

docker image list

This yields an image size of 227 MB.

2.1.2 Chiseled & Ahead-of-time (AOT) Compilation¶

Skipping straight to AOT images:

Frontend.Ui Dockerfile.chiseled.aot

FROM mcr.microsoft.com/dotnet/nightly/runtime-deps:8.0-jammy-chiseled-aot AS base
WORKDIR /app
EXPOSE 8080

ENV ASPNETCORE_URLS=http://+:8080

USER app
FROM mcr.microsoft.com/dotnet/nightly/sdk:8.0-jammy-aot AS build
ARG configuration=Release
WORKDIR /src
COPY ["TasksTracker.WebPortal.Frontend.Ui/TasksTracker.WebPortal.Frontend.Ui.csproj", "TasksTracker.WebPortal.Frontend.Ui/"]
RUN dotnet restore "TasksTracker.WebPortal.Frontend.Ui/TasksTracker.WebPortal.Frontend.Ui.csproj"
COPY . .
WORKDIR "/src/TasksTracker.WebPortal.Frontend.Ui"
RUN dotnet build "TasksTracker.WebPortal.Frontend.Ui.csproj" -c $configuration -o /app/build

FROM build AS publish
ARG configuration=Release
RUN dotnet publish "TasksTracker.WebPortal.Frontend.Ui.csproj" -c $configuration -o /app/publish /p:UseAppHost=false

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "TasksTracker.WebPortal.Frontend.Ui.dll"]

Create a new file, Dockerfile.chiseled.aot in the Frontend Ui root directory, then build the image again:

docker build -t frontend-ui-chiseled-aot -f .\TasksTracker.WebPortal.Frontend.Ui\Dockerfile.chiseled.aot .

docker image list

This much-improved image is now 20.6 MB.

2.2 Backend Service¶

2.2.1 The Status Quo¶

Our original Dockerfile looks like this:

Backend.Svc Dockerfile

FROM mcr.microsoft.com/dotnet/aspnet:8.0 AS base
WORKDIR /app
EXPOSE 8080

ENV ASPNETCORE_URLS=http://+:8080

USER app
FROM mcr.microsoft.com/dotnet/sdk:8.0 AS build
ARG configuration=Release
WORKDIR /src
COPY ["TasksTracker.Processor.Backend.Svc/TasksTracker.Processor.Backend.Svc.csproj", "TasksTracker.Processor.Backend.Svc/"]
RUN dotnet restore "TasksTracker.Processor.Backend.Svc/TasksTracker.Processor.Backend.Svc.csproj"
COPY . .
WORKDIR "/src/TasksTracker.Processor.Backend.Svc"
RUN dotnet build "TasksTracker.Processor.Backend.Svc.csproj" -c $configuration -o /app/build

FROM build AS publish
ARG configuration=Release
RUN dotnet publish "TasksTracker.Processor.Backend.Svc.csproj" -c $configuration -o /app/publish /p:UseAppHost=false

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "TasksTracker.Processor.Backend.Svc.dll"]

cd ~\TasksTracker.ContainerApps

docker build -t backend-svc-status-quo -f .\TasksTracker.Processor.Backend.Svc\Dockerfile .

docker image list

This yields an image size of 222 MB.

2.2.2 Chiseled & Ahead-of-time (AOT) Compilation¶

Skipping straight to AOT images:

Backend.Svc Dockerfile.chiseled.aot

FROM mcr.microsoft.com/dotnet/nightly/runtime-deps:8.0-jammy-chiseled-aot AS base
WORKDIR /app
EXPOSE 8080

ENV ASPNETCORE_URLS=http://+:8080

USER app
FROM mcr.microsoft.com/dotnet/nightly/sdk:8.0-jammy-aot AS build
ARG configuration=Release
WORKDIR /src
COPY ["TasksTracker.Processor.Backend.Svc/TasksTracker.Processor.Backend.Svc.csproj", "TasksTracker.Processor.Backend.Svc/"]
RUN dotnet restore "TasksTracker.Processor.Backend.Svc/TasksTracker.Processor.Backend.Svc.csproj"
COPY . .
WORKDIR "/src/TasksTracker.Processor.Backend.Svc"
RUN dotnet build "TasksTracker.Processor.Backend.Svc.csproj" -c $configuration -o /app/build

FROM build AS publish
ARG configuration=Release
RUN dotnet publish "TasksTracker.Processor.Backend.Svc.csproj" -c $configuration -o /app/publish /p:UseAppHost=false

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "TasksTracker.Processor.Backend.Svc.dll"]

Create a new file, Dockerfile.chiseled.aot in the Backend Svc root directory, then build the image again:

docker build -t backend-svc-chiseled-aot -f .\TasksTracker.Processor.Backend.Svc\Dockerfile.chiseled.aot .

docker image list

This much-improved image is now 16 MB.

3. Optimization Summary¶

3.1 Table of Improvements¶

The Backend API and the Backend Svc projects are all but identical while the Frontend UI project is just slightly larger. All three projects were cut down to less than 10% of their original size!

	Image Size	Size Reduction	Size compared to Original	Packages	CVEs
Backend API Original	222 MB			452	19
Backend API Chiseled & AOT	16 MB	206 MB	7.2%	23	9
Frontend UI Original	226 MB			447	19
Frontend UI Chiseled & AOT	21 MB	205 MB	9.3%	18	9
Backend Svc Original	222 MB			452	19
Backend Svc Chiseled & AOT	16 MB	206 MB	7.2%	23	9

3.2 Build & Deploy All Services¶

The last step is to build & deploy updated images. For good measure, let's do the Backend API as well even though we did it earlier already.

# Build Backend API on ACR and Push to ACR
az acr build `
--registry $AZURE_CONTAINER_REGISTRY_NAME `
--image "tasksmanager/$BACKEND_API_NAME" `
--file 'TasksTracker.TasksManager.Backend.Api/Dockerfile.chiseled.aot' .

# Build Backend Service on ACR and Push to ACR
az acr build `
--registry $AZURE_CONTAINER_REGISTRY_NAME `
--image "tasksmanager/$BACKEND_SERVICE_NAME" `
--file 'TasksTracker.Processor.Backend.Svc/Dockerfile.chiseled.aot' .

# Build Frontend Web App on ACR and Push to ACR
az acr build `
--registry $AZURE_CONTAINER_REGISTRY_NAME `
--image "tasksmanager/$FRONTEND_WEBAPP_NAME" `
--file 'TasksTracker.WebPortal.Frontend.Ui/Dockerfile.chiseled.aot' .

# Update Backend API App container app and create a new revision
az containerapp update `
--name $BACKEND_API_NAME  `
--resource-group $RESOURCE_GROUP `
--revision-suffix v$TODAY-7 `
--set-env-vars "ApplicationInsights__InstrumentationKey=secretref:appinsights-key"

# Update Frontend Web App container app and create a new revision
az containerapp update `
--name $FRONTEND_WEBAPP_NAME  `
--resource-group $RESOURCE_GROUP `
--revision-suffix v$TODAY-7 `
--set-env-vars "ApplicationInsights__InstrumentationKey=secretref:appinsights-key"

# Update Backend Background Service container app and create a new revision
az containerapp update `
--name $BACKEND_SERVICE_NAME `
--resource-group $RESOURCE_GROUP `
--revision-suffix v$TODAY-7 `
--set-env-vars "ApplicationInsights__InstrumentationKey=secretref:appinsights-key"

Verify that the application continues to work with the three much smaller containers:

1	`$FRONTEND_UI_BASE_URL`

Navigate to the root and persist the module to Git.

git add .
git commit -m "Add Module 12"

Review¶

In this module, we have accomplished two objectives:

Learned how to reduce container footprints.
Built & deployed updated, optimized images to Azure.
