Module 6 - ACA with Dapr Bindings Building Block¶

In this module we are going to extend the backend background processor service (ACA-Processor Backend) to interface with an external system which is outside our Tasks Tracker microservice application. To achieve this in a simple way we will utilize Dapr Input and Output Bindings.

The external system owns an Azure Storage Queue which the Tasks Tracker microservice application reacts to through an event handler (aka Input Binding) that receives and processes the message coming to the storage queue. Once the processing of the message completes and stores the task into Cosmos DB, the system will trigger an event (aka Output binding) that invokes the external service which in turn stores the content of the message into an Azure Blob Storage container. Here it is important to emphasize that both the Azure Storage Queue and the Azure Storage Blob belong to the external system.

The rest of this module will implement the three scenarios mentioned below:

• Trigger a process on the ACA-Processor Backend based on a message sent to a specific Azure Storage Queue. This scenario will assume that the Azure Storage Queue is an external system to which external clients can submit tasks.
• From the service ACA-Processor Backend we will invoke an external resource that stores the content of the incoming task from the external queue as a JSON blob file on Azure Storage Blobs.
• Remove the SendGrid SDK as well as the custom code created in the previous module to send emails and replace it with Dapr SendGrid output binding.

Take a look at the high-level architecture diagram below to understand the flow of input and output bindings in Dapr:

If you look at Dapr Bindings Building Block, you will notice a lot of similarities with the Pub/Sub Building Block that we covered in the previous module. But remember that Pub/Sub Building Block is meant to be used for Async communication between services within your solution. The Binding Building Block has a wider scope and it mainly focuses on connectivity and interoperability across different systems, disparate applications, and services outside the boundaries of your own application. For a full list of supported bindings visit this link.

Overview of Dapr Bindings Building Block¶

Let's take a look at the detailed Dapr Binding Building Block architecture diagram that we are going to implement in this module to fulfill the use case we discussed earlier:

Looking at the diagram we notice the following:

• In order to receive events and data from the external resource (Azure Storage Queue) our ACA-Processor Backend service needs to register a public endpoint that will become an event handler.
• This binding configuration between the external resource and our service will be configured by using the Input Binding Configuration yaml file. The Dapr sidecar of the background service will read the configuration and subscribe to the endpoint defined for the external resource. In our case, it will be a specific Azure Storage Queue.
• When a message is published to the storage queue, the input binding component running in the Dapr sidecar picks it up and triggers the event.
• The Dapr sidecar invokes the endpoint (event handler defined in the ACA-Processor Backend Service) configured for the binding. In our case, it will be an endpoint that can be reached by invoking a POST operation http://localhost:3502/ExternalTasksProcessor/Process and the request body content will be the JSON payload of the published message to the Azure Storage Queue.
• When the event is handled in our ACA-Processor Backend and the business logic is completed, this endpoint needs to return an HTTP response with a 200 ok status to acknowledge that processing is complete. If the event handling is not completed or there is an error, this endpoint should return HTTP 400 or 500 status code.
• In order to enable the service ACA-Processor Backend to trigger an event that invokes an external resource, we need to use the Output Binding Configuration Yaml file to configure the binding between our service and the external resource (Azure Blob Storage) and how to connect to it.
• Once the Dapr sidecar reads the binding configuration file, our service can trigger an event that invokes the output binding API on the Dapr sidecar. In our case, the event will be creating a new blob file containing the content of the message we read earlier from the Azure Storage Queue.
• With this in place, our service ACA-Processor Backend will be ready to invoke the external resource by sending a POST operation to the endpoint http://localhost:3502/v1.0/bindings/ExternalTasksBlobstore and the JSON payload will contain the content below. Alternatively, we can use the Dapr client SDK to invoke this output biding to invoke the external service and store the file in Azure Blob Storage.

{
    "data": "{
        "taskName": "Task Coming from External System",
        "taskAssignedTo": "user1@hotmail.com",
        "taskCreatedBy": "tjoudeh@bitoftech.net",
        "taskDueDate": "2022-08-19T12:45:22.0983978Z"
    }",
    "operation": "create"
}

To proceed with this workshop we need to provision the Azure Storage Account to start responding to messages published to a queue and then later use the same storage account to store blob files as an external event. Run the PowerShell script below to create Azure Storage Account and get the master key.

$STORAGE_ACCOUNT_NAME = "<replace with a globally unique storage name.The field can contain only lowercase letters and numbers. Name must be between 3 and 24 characters.>"

az storage account create `
--name $STORAGE_ACCOUNT_NAME `
--resource-group $RESOURCE_GROUP `
--location $LOCATION `
--sku Standard_LRS `
--kind StorageV2

# list azure storage keys
az storage account keys list -g $RESOURCE_GROUP -n $STORAGE_ACCOUNT_NAME

Updating the Backend Background Processor Project¶

1. Create an event handler (API endpoint) to respond to messages published to Azure Storage Queue¶

Let's add an endpoint that will be responsible to handle the event when a message is published to Azure Storage Queue. This endpoint will start receiving the message published from the external service.

Start by adding a new controller Controllers folder under the TasksTracker.Processor.Backend.Svc project:

using Dapr.Client;
using Microsoft.AspNetCore.Mvc;
using TasksTracker.Processor.Backend.Svc.Models;

namespace TasksTracker.Processor.Backend.Svc.Controllers
{
    [Route("ExternalTasksProcessor")]
    [ApiController]
    public class ExternalTasksProcessorController : ControllerBase
    {
        private readonly ILogger<ExternalTasksProcessorController> _logger;
        private readonly DaprClient _daprClient;

        public ExternalTasksProcessorController(ILogger<ExternalTasksProcessorController> logger,
                                                DaprClient daprClient)
        {
            _logger = logger;
            _daprClient = daprClient;
        }

        [HttpPost("process")]
        public async Task<IActionResult> ProcessTaskAndStore([FromBody] TaskModel taskModel)
        {
            try
            {
                _logger.LogInformation("Started processing external task message from storage queue. Task Name: '{0}'", taskModel.TaskName);

                taskModel.TaskId = Guid.NewGuid();
                taskModel.TaskCreatedOn = DateTime.UtcNow;

                //Dapr SideCar Invocation (save task to a state store)
                await _daprClient.InvokeMethodAsync(HttpMethod.Post, "tasksmanager-backend-api", $"api/tasks", taskModel);

                _logger.LogInformation("Saved external task to the state store successfully. Task name: '{0}', Task Id: '{1}'", taskModel.TaskName, taskModel.TaskId);

                //ToDo: code to invoke external binding and store queue message content into blob file in Azure storage

                return Ok();
            }
            catch (Exception)
            {
                throw;
            }
        }
    }
}

2. Create Dapr Input Binding Component file¶

Now we need to create the component configuration file which will describe the configuration as well as how our backend background processor will start handling events coming from the external service (Azure Storage Queues). To do so, add a new file under components folder.

apiVersion: dapr.io/v1alpha1
kind: Component
metadata:
  name: externaltasksmanager
spec:
  type: bindings.azure.storagequeues
  version: v1
  metadata:
    - name: storageAccount
      value: "<Your Storage Account Name>"
    - name: storageAccessKey
      value: "<Your Storage Account Key>"
    - name: queue
      value: "external-tasks-queue"
    - name: decodeBase64
      value: "true"
    - name: route
      value: /externaltasksprocessor/process

3. Create Dapr Output Binding Component file¶

Now we need to create the component configuration file which will describe the configuration and how our service ACA-Processor Backend will be able to invoke the external service (Azure Blob Storage) and be able to create and store a JSON blob file that contains the content of the message received from Azure Storage Queues.

To do so, add a new file folder components.

apiVersion: dapr.io/v1alpha1
kind: Component
metadata:
  name: externaltasksblobstore
spec:
  type: bindings.azure.blobstorage
  version: v1
  metadata:
    - name: storageAccount
      value: "<Your Storage Account Name>"
    - name: storageAccessKey
      value: "<Your Storage Account Key>"
    - name: container
      value: "externaltaskscontainer"
    - name: decodeBase64
      value: false

5. Use Dapr client SDK to invoke the output binding¶

Now we need to invoke the output binding by using the .NET SDK.

Update and replace the code in the file with the code below. Pay close attention to the updated ProcessTaskAndStore action method:

using Dapr.Client;
using Microsoft.AspNetCore.Mvc;
using TasksTracker.Processor.Backend.Svc.Models;

namespace TasksTracker.Processor.Backend.Svc.Controllers
{
    [Route("ExternalTasksProcessor")]
    [ApiController]
    public class ExternalTasksProcessorController : ControllerBase
    {
        private readonly ILogger<ExternalTasksProcessorController> _logger;
        private readonly DaprClient _daprClient;
        private const string OUTPUT_BINDING_NAME = "externaltasksblobstore";
        private const string OUTPUT_BINDING_OPERATION = "create";

        public ExternalTasksProcessorController(ILogger<ExternalTasksProcessorController> logger,
                                                DaprClient daprClient)
        {
            _logger = logger;
            _daprClient = daprClient;
        }

        [HttpPost("process")]
        public async Task<IActionResult> ProcessTaskAndStore([FromBody] TaskModel taskModel)
        {
            try
            {
                _logger.LogInformation("Started processing external task message from storage queue. Task Name: '{0}'", taskModel.TaskName);

                taskModel.TaskId = Guid.NewGuid();
                taskModel.TaskCreatedOn = DateTime.UtcNow;

                //Dapr SideCar Invocation (save task to a state store)
                await _daprClient.InvokeMethodAsync(HttpMethod.Post, "tasksmanager-backend-api", $"api/tasks", taskModel);

                _logger.LogInformation("Saved external task to the state store successfully. Task name: '{0}', Task Id: '{1}'", taskModel.TaskName, taskModel.TaskId);

                //code to invoke external binding and store queue message content into blob file in Azure storage
                IReadOnlyDictionary<string,string> metaData = new Dictionary<string, string>()
                    {
                        { "blobName", $"{taskModel.TaskId}.json" },
                    };


                 await _daprClient.InvokeBindingAsync(OUTPUT_BINDING_NAME, OUTPUT_BINDING_OPERATION, taskModel, metaData);

                _logger.LogInformation("Invoked output binding '{0}' for external task. Task name: '{1}', Task Id: '{2}'", OUTPUT_BINDING_NAME, taskModel.TaskName, taskModel.TaskId);

                return Ok();
            }
            catch (Exception)
            {
                throw;
            }
        }
    }
}

6. Test Dapr bindings locally¶

Now we are ready to give it an end-to-end test on our dev machines. Run the 3 applications together using Debug and Run button from VS Code. You can read how we configured the 3 apps to run together in this section.

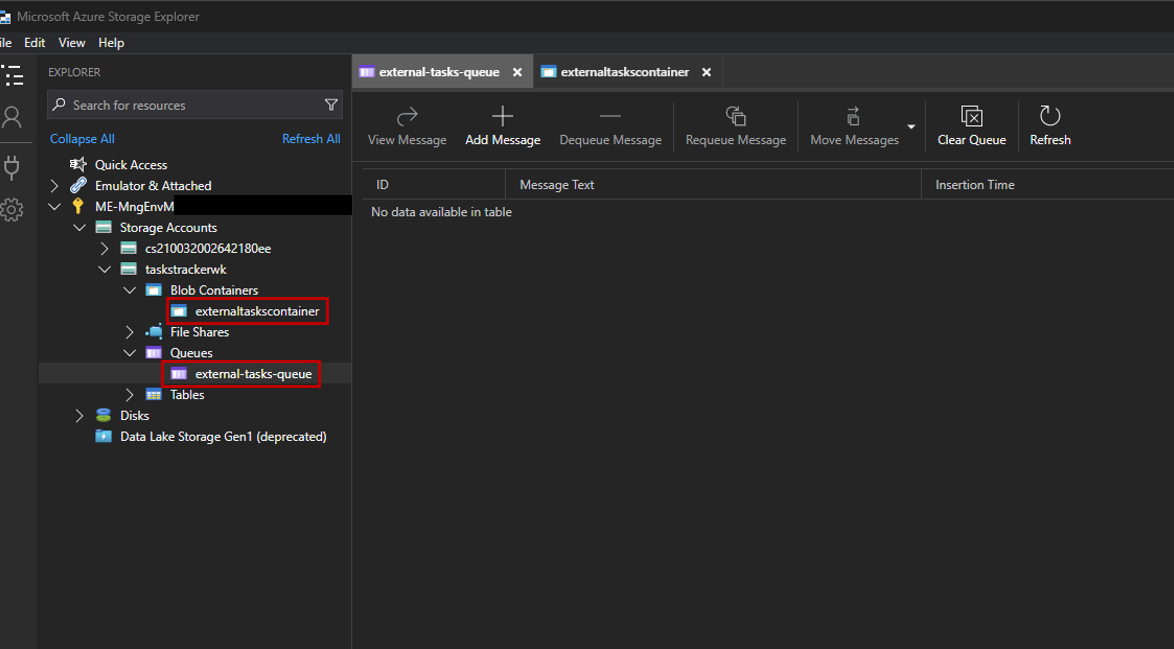

Open Azure Storage Explorer on your local machine. If you don't have it installed you can install it from here. Login to your Azure Subscription and navigate to the storage account already created, create a queue, and use the same name you already used in the Dapr Input configuration file. In our case the name of the queue in the configuration file is external-tasks-queue.

The content of the message that Azure Storage Queue excepts should be as below, so try to queue a new message using the tool as the image below:

{
  "taskName": "Task from External System",
  "taskAssignedTo": "user1@hotmail.com",
  "taskCreatedBy": "tjoudeh@bitoftech.net",
  "taskDueDate": "2022-08-19T12:45:22.0983978Z"
}

If all is configured successfully you should be able to see a JSON file created as a blob in the Azure Storage Container named externaltaskscontainer based on your configuration.

Use Dapr SendGrid Output Bindings¶

In the previous module we've seen how we are sending notification emails when a task is assigned to a user by installing the SendGrid SDK NuGet package and writing some custom code to trigger sending emails. Dapr Can simplify this process by using the Dapr SendGrid Output binding component.

So let's see how we can simplify this and by replacing the external SendGrid SDK with dapr output binding.

1. Create Dapr SendGrid Output Binding Component file¶

We need to create the component configuration file which will describe the configuration and how our service ACA-Processor Backend will be able to invoke SendGrid service and notify the task owner by email.

Add a new file under the components folder as shown below:

apiVersion: dapr.io/v1alpha1
kind: Component
metadata:
  name: sendgrid
spec:
  type: bindings.twilio.sendgrid
  version: v1
  metadata:
    - name: emailFrom
      value: "<Your email which was white listed with SendGrid when you obtained the API Key>"
    - name: emailFromName
      value: "Tasks Tracker Notification"
    - name: apiKey
      value: "<Send Grid API Key>"

2. Remove SendGrid package reference¶

• Update file TasksTracker.Processor.Backend.Svc.csproj and remove the NuGet package reference PackageReference Include="SendGrid" Version="9.28.1". With the introduction of Dapr SendGrid Output bindings there is no need to include the external SDKs.
• Also delete the following using statements from the file named TasksNotifierController.cs:

// delete these using statements
using SendGrid;
using SendGrid.Helpers.Mail;

3. Update SendEmail code to use Output bindings instead of SendGrid SDK¶

Now we need to invoke the SendGrid output binding by using the Dapr .NET SDK. Update the file with the highlighted code below:

private async Task<bool> SendEmail(TaskModel taskModel)
{
    var integrationEnabled = _config.GetValue<bool>("SendGrid:IntegrationEnabled");
    var sendEmailResponse = true;
    var subject = $"Task '{taskModel.TaskName}' is assigned to you!";
    var plainTextContent = $"Task '{taskModel.TaskName}' is assigned to you. Task should be completed by the end of: {taskModel.TaskDueDate.ToString("dd/MM/yyyy")}";

    try
    {
        //Send actual email using Dapr SendGrid Outbound Binding (Disabled when running load test)
        if (integrationEnabled)
        {
            IReadOnlyDictionary<string, string> metaData = new Dictionary<string, string>()
        {
            { "emailTo", taskModel.TaskAssignedTo },
            { "emailToName", taskModel.TaskAssignedTo },
            { "subject", subject }
        };
            await _daprClient.InvokeBindingAsync("sendgrid", "create", plainTextContent, metaData);
        }
        else
        {
            //Introduce artificial delay to slow down message processing
            _logger.LogInformation("Simulate slow processing for email sending for Email with Email subject '{0}' Email to: '{1}'", subject, taskModel.TaskAssignedTo);
            Thread.Sleep(5000);
        }

        if (sendEmailResponse)
        {
            _logger.LogInformation("Email with subject '{0}' sent to: '{1}' successfully", subject, taskModel.TaskAssignedTo);
        }
    }
    catch (System.Exception ex)
    {
        sendEmailResponse = false;
        _logger.LogError(ex, "Failed to send email with subject '{0}' To: '{1}'.", subject, taskModel.TaskAssignedTo);
        throw;
    }
    return sendEmailResponse;
}

Configure Dapr secret store component with Azure Key Vault¶

Currently, we have 3 Dapr components which are not Azure AD enabled services. As you may have noticed so far, the different component files are storing sensitive keys to access the different external services. The recommended approach for retrieving these secrets is to reference an existing Dapr secret store component that securely accesses the secrets.

We need Create a Dapr secret store component using the Container Apps schema. The Dapr secret store will be configured with Azure Key Vault secret store.

1. Create an Azure Key Vault resource¶

Create an Azure Key Vault which will be used to store securely any secret or key used in our application.

$KEYVAULTNAME = "<your akv name. Should be globally unique.
Vault name must only contain alphanumeric characters and dashes and cannot start with a number.>"
az keyvault create `
--name $KEYVAULTNAME `
--resource-group $RESOURCE_GROUP `
--enable-rbac-authorization true `
--location $LOCATION

2. Grant Backend Processor App a Role to read secrets from Azure Key Vault¶

In the previous module we have configured the system-assigned identity for the service ACA-Processor Backend. Now we need to assign a role named Key Vault Secrets User to it, so it access and read secrets from Azure Key Vault.

You can read more about Azure built-in roles for Key Vault data plane operations.

$KV_SECRETSUSER_ROLEID = "4633458b-17de-408a-b874-0445c86b69e6" # ID for 'Key Vault Secrets User' Role
$subscriptionID= az account show --query id -o tsv

# Get PRINCIPALID of BACKEND Processor Service
$BACKEND_SVC_PRINCIPALID = az containerapp show `
-n $BACKEND_SVC_NAME `
-g $RESOURCE_GROUP `
--query identity.principalId

az role assignment create `
--role $KV_SECRETSUSER_ROLEID `
--assignee $BACKEND_SVC_PRINCIPALID `
--scope "/subscriptions/$subscriptionID/resourcegroups/$RESOURCE_GROUP/providers/Microsoft.KeyVault/vaults/$KEYVAULTNAME"

3. Create secrets in the Azure Key Vault¶

To create a secret in Azure Key Vault you need to have a role which allows you to create secrets. From the Azure CLI we will assign the role Key Vault Secrets Officer to the user signed in to AZ CLI to be able to create secrets. To do so use the script below:

$SIGNEDIN_UERID =  az ad signed-in-user show --query id
$KV_SECRETSOFFICER_ROLEID = "b86a8fe4-44ce-4948-aee5-eccb2c155cd7" #ID for 'Key Vault Secrets Office' Role

az role assignment create --role $KV_SECRETSOFFICER_ROLEID `
--assignee $SIGNEDIN_UERID `
--scope "/subscriptions/$subscriptionID/resourcegroups/$RESOURCE_GROUP/providers/Microsoft.KeyVault/vaults/$KEYVAULTNAME"

Now we will create 2 secrets in the Azure Key Vault using the commands below:

# Set SendGrid API Key as a secret named 'sendgrid-api-key'
az keyvault secret set `
--vault-name $KEYVAULTNAME `
--name "sendgrid-api-key" `
--value "<Send Grid API Key>.leave this empty if you opted not to register with the sendgrip api"

# Set External Azure Storage Access Key as a secret named 'external-azure-storage-key'
az keyvault secret set `
--vault-name $KEYVAULTNAME `
--name "external-azure-storage-key" `
--value "<Your Storage Account Key>"

4. Create a ACA Dapr Secrets Store Component file¶

Create a new yaml file under the aca-components folder.

componentType: secretstores.azure.keyvault
version: v1
metadata:
  - name: vaultName
    value: <Your keyvault name goes here>
scopes:
  - tasksmanager-backend-processor

5. Create Input and Output Binding Component files matching Azure Container Apps Specs¶

Add new files under the aca-components use the yaml below:

componentType: bindings.azure.storagequeues
version: v1
secretStoreComponent: "secretstoreakv"
metadata:
  - name: storageAccount
    value: "<Your Storage Account Name>"
  - name: storageAccessKey
    secretRef: external-azure-storage-key
  - name: queue
    value: "external-tasks-queue"
  - name: decodeBase64
    value: "true"
  - name: route
    value: /externaltasksprocessor/process
scopes:
  - tasksmanager-backend-processor

componentType: bindings.azure.blobstorage
version: v1
secretStoreComponent: "secretstoreakv"
metadata:
  - name: storageAccount
    value: "<Your Storage Account Name>"
  - name: storageAccessKey
    secretRef: external-azure-storage-key
  - name: container
    value: "externaltaskscontainer"
  - name: decodeBase64
    value: "false"
  - name: publicAccessLevel
    value: "none"
scopes:
  - tasksmanager-backend-processor

6. Create SendGrid Output Binding Component file matching Azure Container Apps Specs¶

Add a new file under the aca-components use the yaml below:

componentType: bindings.twilio.sendgrid
version: v1
secretStoreComponent: "secretstoreakv"
metadata:
  - name: emailFrom
    value: "mail@gmail.com"
  - name: emailFromName
    value: "Tasks Tracker Notification"
  - name: apiKey
    secretRef: sendgrid-api-key
scopes:
  - tasksmanager-backend-processor

With those changes in place, we are ready to rebuild the backend background processor container image, update Azure Container Apps Env, and redeploy a new revision.

Deploy a new revision of the Backend Background Processor App to ACA¶

1. Build the Backend Background Processor image and push it to ACR¶

As we have done previously we need to build and deploy the Backend Background Processor image to ACR, so it is ready to be deployed to ACA. Continue using the same PowerShell console and paste the code below (make sure you are under the TasksTracker.ContainerApps directory):

az acr build --registry $ACR_NAME --image "tasksmanager/$BACKEND_SVC_NAME" --file 'TasksTracker.Processor.Backend.Svc/Dockerfile' .

2. Add Dapr Secret Store Component to ACA Environment¶

We need to run the command below to create the Dapr secret store component:

az containerapp env dapr-component set `
--name $ENVIRONMENT --resource-group $RESOURCE_GROUP `
--dapr-component-name secretstoreakv `
--yaml '.\aca-components\containerapps-secretstore-kv.yaml'

3. Add three Bindings Dapr Components to ACA Environment¶

Next, we will add create the three Dapr bindings components using the component files created.

##Input binding component for Azure Storage Queue
az containerapp env dapr-component set `
  --name $ENVIRONMENT --resource-group $RESOURCE_GROUP `
  --dapr-component-name externaltasksmanager `
  --yaml '.\aca-components\containerapps-bindings-in-storagequeue.yaml'

##Output binding component for Azure Blob Storage
az containerapp env dapr-component set `
 --name $ENVIRONMENT --resource-group $RESOURCE_GROUP `
  --dapr-component-name externaltasksblobstore `
 --yaml '.\aca-components\containerapps-bindings-out-blobstorage.yaml'

##Output binding component for SendGrid
az containerapp env dapr-component set `
 --name $ENVIRONMENT --resource-group $RESOURCE_GROUP `
  --dapr-component-name sendgrid `
 --yaml '.\aca-components\containerapps-bindings-out-sendgrid.yaml'

4. Deploy new revisions of the Backend Background Processor to ACA¶

Update the Azure Container App hosting the Backend Background Processor with a new revision so our code changes are available for end users.

## Update Backend Background Processor container app and create a new revision
az containerapp update `
--name $BACKEND_SVC_NAME `
--resource-group $RESOURCE_GROUP `
--revision-suffix v20230224-1 `
#comment out this line if you opted not to setup a sendgrid account in module 5
--remove-env-vars "SendGrid__ApiKey"

5. Remove SendGrid secret from the Backend Background Processor App¶

Remove the secret stored in Secrets of the Backend Background Processor as this secret is not used anymore.

az containerapp secret remove --name $BACKEND_SVC_NAME `
--resource-group $RESOURCE_GROUP `
--secret-names "sendgrid-apikey"

{
  "taskName": "Task from External System",
  "taskAssignedTo": "user42@hotmail.com",
  "taskCreatedBy": "tjoudeh@bitoftech.net",
  "taskDueDate": "2022-08-19T12:45:22.0983978Z"
}

In the next module, we will cover a special type of Dapr input binding named Cron Binding.
